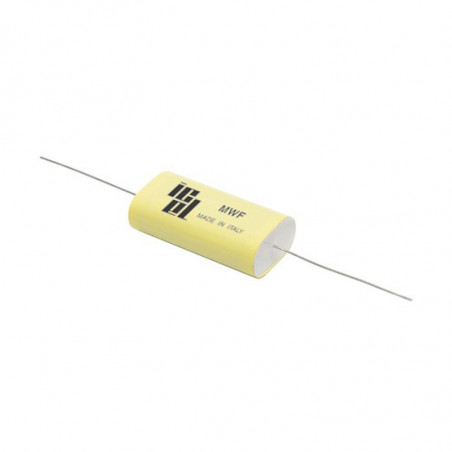

MWR_MWF Polyester-Kondensatoren.
  • MWR_MWF Polyester-Kondensatoren.

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Icel

MWR_MWF Polyester-Kondensatoren.

Main applications

  • Blocking, filtering, bypassing, timing, coupling, decoupling, general applications in electronics
  • Low AC voltage motor running
  • Low power switching applications
  • Low pulse operation

Execution and Reference Standard

  • Extended metallized film
  • Internal series connection for Ur≥1000Vdc.
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 60384/2, IEC 60068, RoHS


MWR Ur Cn (μF) du/dt (V/μs) Nom. size D (mm) x L (mm)
50 Vdc (30 Vac) 1.5 ÷ 10 6 ÷ 9 7x13 ÷ 12x19
63 Vdc (40 Vac) 0.22 ÷ 100 4 ÷ 11 5x13 ÷ 30.5x44
100 Vdc (63 Vac) 0.15 ÷ 68 4 ÷ 12 5x13 ÷ 32x44
250 Vdc (160 Vac) 0.068 ÷ 33 6.5 ÷ 25 4.5x13 ÷ 35x44
400 Vdc (200 Vac) 0.022 ÷ 10 10 ÷ 40 4.5x13 ÷ 31.5x44
630 Vdc (220 Vac) 0.01 ÷ 4.7 14 ÷ 60 4.5x13 ÷ 32.5x44
1000 Vdc (400 Vac) 0.0047 ÷ 2.2 20 ÷ 80 5x13 ÷ 30x44
1500 Vdc (440 Vac) 0.001 ÷ 1.5 25 ÷ 90 4.5x13 ÷ 31.5x44

MWF Ur Cn (μF) du/dt (V/μs) Nom. size D (mm) x L (mm)
63 Vdc (40 Vac) 1.5 ÷ 33 4 ÷ 7 5.5x9.5x19 ÷ 15.5x25.5x32
100 Vdc (63 Vac) 1 ÷ 47 4 ÷ 9 5x9x19 ÷ 20x30x44
250 Vdc (160 Vac) 0.47 ÷ 15 6.5 ÷ 18 5.5x10x19 ÷ 18x28x44
400 Vdc (200 Vac) 0.15 ÷ 6.8 10 ÷ 25 5x9x19 ÷ 20x30x44
630 Vdc (220 Vac) 0.068 ÷ 3.3 14 ÷ 35 5x9x19 ÷ 21.5x31x44
1000 Vdc (400 Vac) 0.033 ÷ 1.5 20 ÷ 40 4.5x9.5x19 ÷ 19x29x44
1500 Vdc (440 Vac) 0.015 ÷ 1 25 ÷ 50 5x9x19 ÷ 20x30x44
