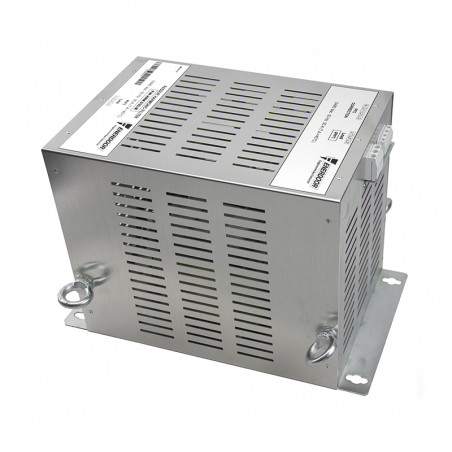

Harmonische Filter für niedrige Frequenzen der FINHRM-Serie
  • Harmonische Filter für niedrige Frequenzen der FINHRM-Serie

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Enerdoor

Harmonische Filter für niedrige Frequenzen der FINHRM-Serie

Harmonic filter for low frequencies series FINHRM

Electric characteristics:
Nominal Voltage 4480 VAC(AVAILABLEUPTO600VAC)
THD Reduction <15%

Properties
Total harmonic distorsion abatement (THD)

Power factor correction (cosφ)

Flicker abatement

Voltage dips compensation




Dimensions

FINHRM

IN
[A]
A B C D E F G H d d1 Pow Loss
[W]
Weigh
[Kg]

.016.M

16 250 300 360 440 400 200 16 20 9 16 80 15

.030.M

30 250 300 360 440 400 200 16 20 9 16 97 25

.050.M

50 290 300 520 600 560 240 32 20 9 16 170 35

.075.M

75 290 300 520 600 560 240 32 20 9 16 225 40

.100.M

100 440 320 620 700 600 390 43 20 9 16 257 50

.150.M

150 440 320 620 700 600 390 43 20 9 16 320 65

.200.M

200 500 370 700 780 740 450 50 20 9 16 575 80

Wyprowadzenia

Rigid Cable
[mm2]
Flexible Cable
[mm2]
Torque
[Nm]
0.2 - 10 0.2 - 6 1.2
0.2 - 10 0.2 - 6 1.2
4 - 25 6 - 35 4.5
4 - 25 6 - 35 4.5
10 - 50 10 - 50 4
35 - 95 35 - 95 20
35 - 95 53 - 95 20


Dimensions
Filtry harmonicznych do niskich częstotliwości serii FINHRM wymiary
