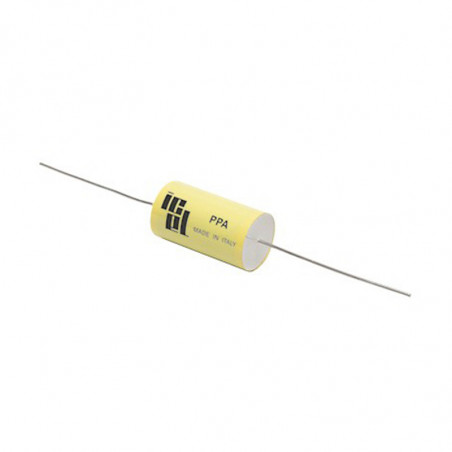

PPA - Polypropylenkondensatoren
  • PPA - Polypropylenkondensatoren

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Icel

PPA - Polypropylenkondensatoren

Main applications

  • Snubber capacitor for energy conversion and control in power semiconductor circuits, protection circuits in SMPSs, induction heaters
  • High voltage, high current and high pulse applications


Execution and reference standard

  • Extended double side metallized carrier film with internal series connection and metallized film
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS
PPA Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size D (mm) x L (mm)
700 Vdc (420 Vac) 0.1 ÷ 6.8 300 ÷ 950 3.5 ÷ 14 10x27 ÷ 40x57
850 Vdc (500 Vac) 0.068 ÷ 4.7 375 ÷ 1200 3.5 ÷ 14 9.5x27 ÷ 39.5x57
1000 Vdc (525 Vac) 0.047 ÷ 3.3 425 ÷ 1400 2.5 ÷ 14 8.5x27 ÷ 38x57
1200 Vdc (550 Vac) 0.033 ÷ 3 500 ÷ 1600 2 ÷ 14 8.5x27 ÷ 40x57
1500 Vdc (600 Vac) 0.022 ÷ 2 625 ÷ 2000 2 ÷ 14 8.5x27 ÷ 40x57
2000 Vdc (650 Vac) 0.015 ÷ 1.2 800 ÷ 2750 2 ÷ 14 9x27 ÷ 38.5x57
2500 Vdc (700 Vac) 0.01 ÷ 0.82 925 ÷ 3900 1.5 ÷ 14 9.5x27 ÷ 39.5x57
3000 Vdc (750 Vac) 0.0047 ÷ 0.47 1275 ÷ 5250 1 ÷ 14 9x27 ÷ 39x57

Product Card - Download
