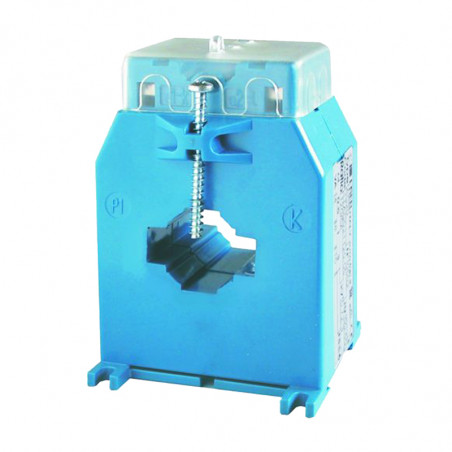

TAC033 Stromtransformator für Ø24-Kabel / 30x10mm Schiene
TAC033 Stromtransformator für Ø24-Kabel / 30x10mm Schiene

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: FRER

TAC033 Stromtransformator für Ø24-Kabel / 30x10mm Schiene

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
60/5 A 1 1.5

TAC033060X05
80/5 A 2 3

TAC033080X05
100/5 A 3 4

TAC033100X05
120/5 A 4 5

TAC033120X05
150/5 A 5 7.5

TAC033150X05
200/5 A 7.5 10

TAC033200X05
250/5 A 10 12

TAC033250X05
300/5 A 10 15

TAC033300X05
400/5 A 12 20

TAC033400X05
500/5 A 15 25

TAC033500X05
600/5 A 20 30

TAC033600X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
60/1 A 1 1.5

TAC033060X01
80/1 A 2 3

TAC033080X01
100/1 A 3 4

TAC033100X01
120/1 A 4 5

TAC033120X01
150/1 A 5 7.5

TAC033150X01
200/1 A 7.5 10

TAC033200X01
250/1 A 10 12

TAC033250X01
300/1 A 10 15

TAC033300X01
400/1 A 12 20

TAC033400X01
500/1 A 15 25

TAC033500X01
600/1 A 20 30

TAC033600X01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
50/5A - - 1 TAC033050Y05 - -
60/5A - - 1.5 TAC033060Y05 - -
80/5A - - 1.5 TAC033080Y05 - -
100/5A 1 TAC033100J05 2.5 TAC033100Y05 1 TAC033100S05
120/5A 1.5 TAC033120J05 3 TAC033120Y05 1.5 TAC033120S05
150/5A 2.5 TAC033150J05 3.5 TAC033150Y05 2.5 TAC033150S05
200/5A 5 TAC033200J05 5 TAC033200Y05 3.5 TAC033200S05
250/5A 5 TAC033250J05 5 TAC033250Y05 5 TAC033250S05
300/5A 5 TAC033300J05 7.5 TAC033300Y05 5 TAC033300S05
400/5A 5 TAC033400J05 10 TAC033400Y05 7.5 TAC033400S05
500/5A 10 TAC033500J05 15 TAC033500Y05 7.5 TAC033500S05
600/5A 12 TAC033600J05 20 TAC033600Y05 10 TAC033600S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
50/1A - - 1 TAC033050Y01 - -
60/1A - - 1.5 TAC033060Y01 - -
80/1A - - 1.5 TAC033080Y01 - -
100/1A 1 TAC033100J01 2.5 TAC033100Y01 1 TAC033100S01
120/1A 1.5 TAC033120J01 3 TAC033120Y01 1.5 TAC033120S01
150/1A 2.5 TAC033150J01 3.5 TAC033150Y01 2.5 TAC033150S01
200/1A 5 TAC033200J01 5 TAC033200Y01 3.5 TAC033200S01
250/1A 5 TAC033250J01 5 TAC033250Y01 5 TAC033250S01
300/1A 5 TAC033300J01 7.5 TAC033300Y01 5 TAC033300S01
400/1A 5 TAC033400J01 10 TAC033400Y01 7.5 TAC033400S01
500/1A 10 TAC033500J01 15 TAC033500Y01 7.5 TAC033500S01
600/1A 12 TAC033600J01 20 TAC033600Y01 10 TAC033600S01



SECONDARY 5 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
60/5A 1 TAC033060K05 - -
80/5A 1.5 TAC033080K05 - -
100/5A 2 TAC033100K05 - -
120/5A 2.5 TAC033120K05 - -
150/5A 3 TAC033150K05 1 TAC033150L05
200/5A 4 TAC033200K05 1 TAC033200L05
250/5A 5 TAC033250K05 1.5 TAC033250L05
300/5A 6 TAC033300K05 2 TAC033300L05
400/5A 8 TAC033400K05 2.5 TAC033400L05
500/5A 10 TAC033500K05 3 TAC033500L05
600/5A 12 TAC033600K05 4 TAC033600L05



SECONDARY 1 A - Protection

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
60/1A 1 TAC033060K01 - -
80/1A 1.5 TAC033080K01 - -
100/1A 2 TAC033100K01 - -
120/1A 2.5 TAC033120K01 - -
150/1A 3 TAC033150K01 1 TAC033150L01
200/1A 4 TAC033200K01 1 TAC033200L01
250/1A 5 TAC033250K01 1.5 TAC033250L01
300/1A 6 TAC033300K01 2 TAC033300L01
400/1A 8 TAC033400K01 2.5 TAC033400L01
500/1A 10 TAC033500K01 3 TAC033500L01
600/1A 12 TAC033600K01 4 TAC033600L01


Dimensions

Przekładnik prądowy TAC033 na kabel Ø24/ szynę 30x10mm wymiar
