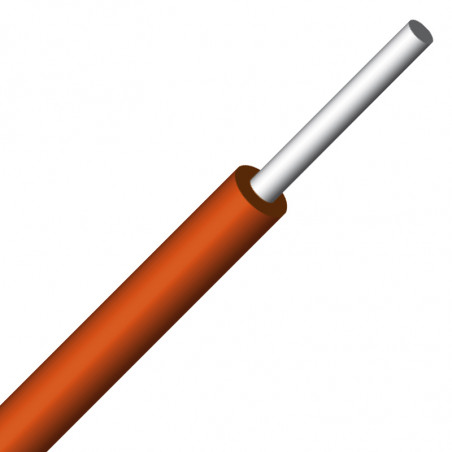

SILICABLE RCS RECS und - eine Reihe von starren Kabel (Draht) -60 ° C bis + 180 ° C
  • SILICABLE RCS RECS und - eine Reihe von starren Kabel (Draht) -60 ° C bis + 180 ° C
  • SILICABLE RCS RECS und - eine Reihe von starren Kabel (Draht) -60 ° C bis + 180 ° C

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: OMERIN

SILICABLE RCS RECS und - eine Reihe von starren Kabel (Draht) -60 ° C bis + 180 ° C

Characteristics

• Continuous operating temperatures: -60 °C to +180 °C.
• Good resistance to thermal shock and UV
• Rated voltage: 300/500 V.
• Test voltage: 2000 V.

Standard products

• All colours including two-coloured.

Approvals - standards

• Halogen-free: IEC 60754-1 / EN 60754-1.
• Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
• Low smoke density: IEC 61034-2 / EN 61034-2.

Applications

• Cabling for household electrical heating appliances.
• Rotating machines (class H).
• Lighting.
• Industrial cabling in hot atmospheres.

Options

• Outer electrical shielding: > Tin-plated copper braid: ref. RCSBE or RECSBE.
• Other nominal cross-sections: contact us.
• Other options: contact us.


1 • Solid bare copper (ref. RCS) or tin-plated (ref. RECS) core - class 1 as per IEC 60228.
2 • Insulation: Silicone rubber.


Nominal cross-section
[mm2]
Nominal stranding Maximum linear resistance at 20 °C
[Ω/km]
Nominal thickness of insulation
[mm]
Nominal diameter
[mm]
Approximate linear weight
[kg/km]
0,50 1 x 0,80 36,0 0,6 2,0 8,4
0,75 1 x 0,98 24,5 0,6 2,2 11,3
1 1 x 1,13 18,1 0,6 2,4 14,2
1,5 1 x 1,38 12,1 0,6 2,6 19,1
2,5 1 x 1,77 7,41 0,7 3,2 30,4
4* 1 x 2,24 4,61 0,8 3,9 47,2
6* 1 x 2,76 3,08 0,8 4,4 67,4

*Przekroje nie są dostępne z ref. RECS.
