Siligaine 15c7 ul von -60 ° C bis + 250 ° C (H- und C-Klasse)
  • Siligaine 15c7 ul von -60 ° C bis + 250 ° C (H- und C-Klasse)

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: OMERIN

Siligaine 15c7 ul von -60 ° C bis + 250 ° C (H- und C-Klasse)

SILIGAINE® 15C7 UL -60 °C to +250 °C Classes H and C

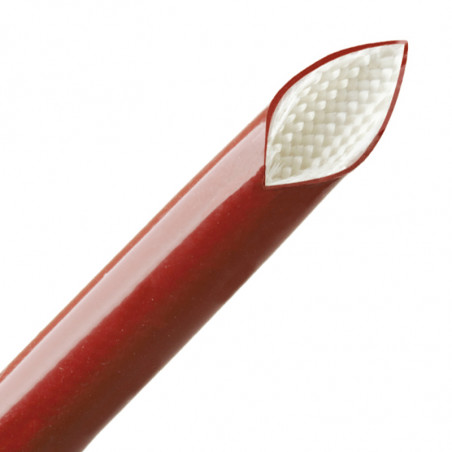

15C7 UL - FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Good resistance to humidity, ozone and UV.
• Good resistance to common chemical environments.
• Compatible with most impregnation varnishes class H.
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Grade A as per UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): > 7 kV.

Standard products
• Colour : brick red.

Packaging
• Diameters from 0.5 to 4.5 mm: 200 m rolls.
• Diameters from 5 to 14 mm: 100 m rolls.
• Diameter 16 mm: 50 m rolls.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 400 to 402.
• UL approval 1441, category UZFT2 and CSA C22.2 no. 198.3, category UZFT8: Grade A silicone coated fiberglass sleeving File no.: E179383.

Applications
• Internal cabling for class H and C rotating machines (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 250°C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• Other diameters: contact us.
• Other colours: contact us.
• Sleevings cut to length: contact us.
• Version not approved: SILIGAINE® 15C7.


Średnica wewnętrzna 15C7 UL
Wartość nominalna
[mm]		 Tolerancja [mm] Nominalna grubość ścianki
[mm]		 Przybliżona waga
[kg/km]
0.5 ±0.15 0.25 1.9
0.8 ±0.15 0.25 3.0
1 ±0.20 0.25 3.8
1.5 ±0.20 0.35 5.7
2 ± 0.20 0.35 7.7
2.5 ± 0.20 0.40 9.7
3 ± 0.20 0.40 11.7
3.5 ± 0.25 0.50 13.8
4 ± 0.25 0.50 16.0
4.5 ± 0.25 0.50 18.1
5 ± 0.25 0.50 20.3
6 ± 0.25 0.50 24.9
7 ± 0.25 0.50 29.6
8 ± 0.25 0.50 34.4
9 ± 0.50 0.65 39.4
10 ± 0.50 0.65 44.6
12 ± 0.50 0.65 55.4
14 ± 1.0 0.65 66.8
16 ± 1.0 0.65 78.9
