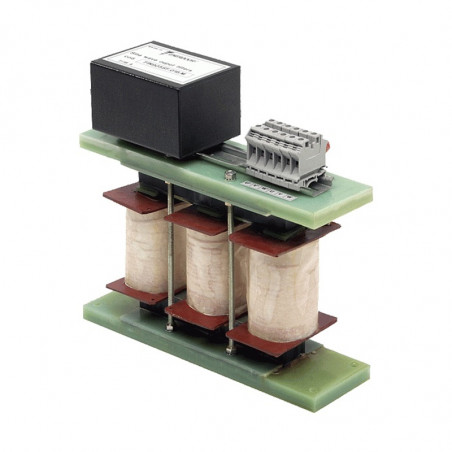

Sinusoidalfilter FIN905SF-Serie
  • Sinusoidalfilter FIN905SF-Serie

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Enerdoor

Sinusoidalfilter FIN905SF-Serie

Filter phase with neutral series FIN905SF

Electric characteristics:
Nominal voltage 480 VAC
Nominal current at ambient temperature of 40°C See table
Frequency <70 Hz

Properties
Converts the pwm output signal into a sinusoidal wave with residual < 5%
DV/DT reduction

Motor losses reduction

Motor life increasing
Compact style


Technical Specifications

FIN905SF

IN
[A]
L
[mH]
CX
[µF]
Min Switch
Frequency
(kHz)
Power Loss
[W]
A B C D E F G H

.005.M

5 13 2.2 (Y) 4 67 150 115 145 125 70 150 250 Ø 7

.008.M

8 6.9 4.7 (Y) 4 79 150 115 145 125 70 150 250 Ø 7

.010.M

10 5.2 6.8 (Y) 4 88 150 115 145 125 70 150 250 Ø 7

.016.M

16 3.1 10 (Y) 4 116 180 190 180 150 60 225 280 Ø 7

.025.M

25 2.4 10 (Y) 4 151 180 110 180 150 80 145 280 Ø 7

.036.M

36 1.6 10 (Y) 4 175 240 190 240 200 95 225 340 Ø 10

.048.M

48 1.1 15 (Y) 4 250 240 190 240 200 95 225 340 Ø 10

.060.M

60 0.85 30 (Y) 3 282 240 190 240 200 95 225 340 Ø 10

.075.M

75 0.75 30 (Y) 3 340 300 170 310 260 110 205 410 Ø 10

.115.M

115 0.5 20 (∆) 3 575 300 190 310 260 130 225 - Ø 10

.180.M

180 0.3 33 (∆) 3 695 480 320 420 360 170 355 - Ø 12

.260.M

260 0.2 47 (∆) 3 895 520 320 340 380 200 355 - Ø 14

.410.B

410 0.13 66 (∆) 3 1170 520 320 340 380 200 355 - Ø 14

.480.B

480 0.11 94 (∆) 3 1390 520 320 340 380 200 355 - Ø 14

.660.B

660 0.14 140 (∆) 2 2050 520 360 460 380 240 395 - Ø 14

.750.B

750 0.12 165 (∆) 2 2900 530 400 520 380 280 435 - Ø 14

.880.B

880 0.11 188 (∆) 2 3450 650 400 630 380 270 475 - Ø 14



Electric diagram

Filtry sinusoidalne seria FIN905SF - schemat


Dimensions

Filtry sinusoidalne seria FIN905SF obudowa
