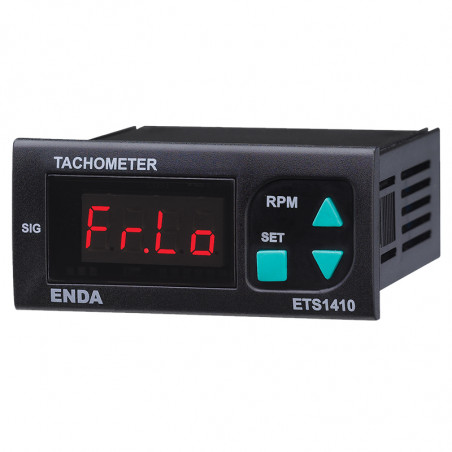

Der Tachoimpulseingang ETS1410

* 35x77 sized.
* Easy to use.
* Decimal point can be adjusted..
* Process value can be devided by a value
between 1 and 999.
* Sampling time is selected automatically
according to input frequency. Sampling time is
between 1 and 16s.
* CE marked according to European Norms.

Technical data

- Ambient/storage temperature	0 ... +50°C/-25 ... +70°C (with no icing)
- Max. relative humidity	80% (temp. <31°C)
- Rated pollution degree	According to EN 60529 Front panel : IP65 Rear panel : IP20
- Height	max 2000m

Do not use the device in locations subject to corrosive and flammable gasses.

Technical data:
- Supply voltage	230V AC +10% -20% or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS module
- Power consumption	<2VA
- Wiring	2.5mm² screw terminal connection
- Display	4 digits, 9.1mm, 7 segment red display LED.
- Accuracy	0,01%
- EMC	EN 61326-1:1997, Al: 1998, A2: 2001
- Safety requirements	EN 61010-1: 2001 (pollution degree 2, over voltage category II, measurement category I) ETS1410 must not be used in location where measurement category is II, III or IV.
INPUTS:
- Sensor input	5...30V pulse
- Measurement frequency	0,07...3000 Hz
- Sampling time	Automatically adjusted according to input frequency. Minimum: 1s, Maximum: 16s
OUTPUT
- Auxiliary supply output	12V DC, Max. 30mA (unregulated)
HOUSING
-Housing type	Suitable for flush-panel mounting.
-Dimensions	34x77x70mm
-Weight	200g
-Enclosure material	Self extinguishing plastics

While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.

Type	Power supply
ETS 1410	230V AC
ETS1410 -SM	9-30VDC / 7-24VAC

Dimensioms:

Connection scheme
