Hersteller: SALTEK

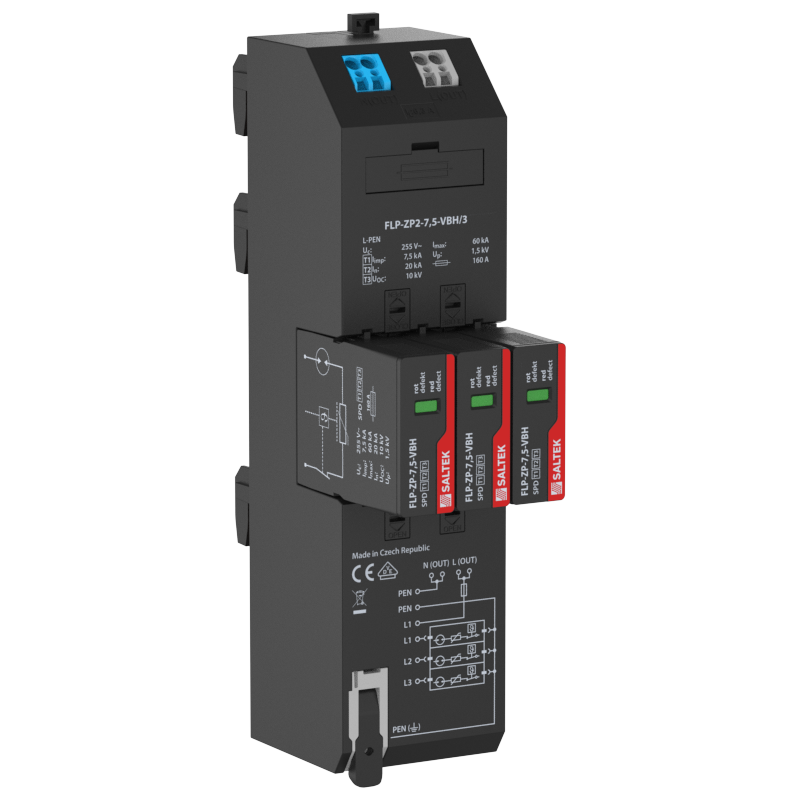

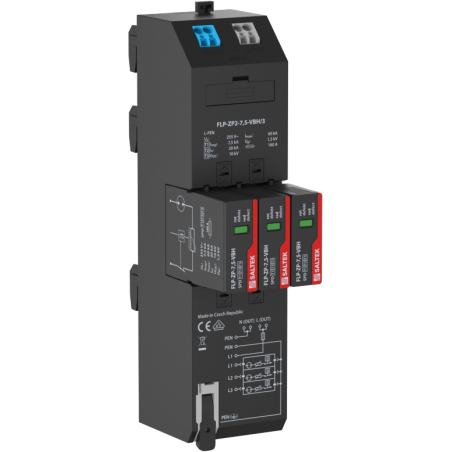

FLP-ZP2-7,5-VBH/3 - Überspannungsschutz (SPD)

  • FLP-ZP2-7,5-VBH/3
  • Nennspannung 230 V AC
  • Sicherheitsstufe IP 20
  • SPD-Typ T1,T2,T3
  • Netztyp TN
  • Gesamter Entladestrom (10/350 µs) 7.50 kA
  • Maximale Betriebsspannung 255.00 V AC
Parameter name Parameter value
Type of SPD T1,T2,T3
Mounting 40 mm busbar system
Nominal voltage Un 230 V AC
Maximum operating voltage Uc 255.00 V AC
Nominal load current - auxiliary output terminals L, N 6.3 A
Type of network TN
Maximum overcurrent protection 160 A gL/gG
Short-circuit current rating ISCCR 25.0 kA
Total discharge current (10/350 µs) ITotal(10/350) 22.50 kA
Lightning impulse current (10/350 µs) Iimp 7.50 kA
Nominal discharge current (8/20 µs) In 20.00 kA
Test voltage Uoc 10.0 kV
Total discharge current (8/20 µs) ITotal(8/20) 100.00 kA
Maximum discharge current (8/20 µs) Imax 60.00 kA
Voltage protection level Up 1.50 kV
Response time ta 100 ns
TOV 5 s L-N 335 V
TOV characteristic (TOV 5 s) withstand
TOV 120 min L-N 440 V
TOV characteristic (120 min) withstand
Cross-section of connected conductors solid (min) 1.00 mm2
Cross-section of connected conductors solid (max) 16.00 mm2
Cross-section of connected conductors stranded (min) 1.00 mm2
Cross-section of connected conductors stranded (max) 16.00 mm2
Cross-section of connected conductors solid (max) - aux. out terminals L, N 4.00 mm2
Cross-section of connected conductors stranded (max) - aux. out terminals L, N 2.50 mm2
Fault indication red indication field
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000381
Plug module FLP-ZP-7,5-VBH/0
Customs tariff number 85363090
EAN 8595090570264
