Siligaine® 24c1 -60 ° C bis + 350 ° C

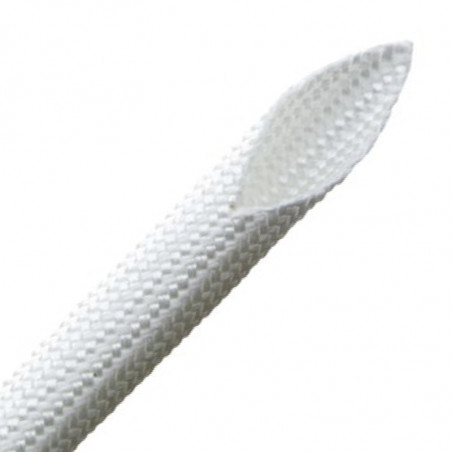

Fibreglass braid sleeving high temperature treated and impregnated with a silicone resin


General characteristics

  • continuous operating temperature: -60°C to +350°C
  • good mechanical strength
  • self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441
  • the total desizing operation (elimination of oils and parasite products) gives SILIGAINE® 24C1 excellent thermal resistance up to +400°C at peak without smoke emission
  • dielectric strength (dry): 0.8 to 1.2 kV

Standard products

  • colour: white

Standards*

  • IEC 60684-1 and 60684-2
  • UL Approval, category UZIQ2: meets the requirements of the flame retardant test VW-1, file no. E212701

Packaging

  • diameters from 0,5 to 4,5 mm: 200 m rolls
  • diameters from 5 to 8 mm: 100 m rolls
  • diameters from 9 to 12 mm: 50 m rolls
  • diameters from 14 to 25 mm: 25 m rolls

Applications

  • high temperature heating elements (bands, cartridges, etc.)
  • domestic electrical heating appliances, cooking appliances
  • all electrothermal machines (ovens, air ovens, etc.)
  • sheathing of cable harnesses for cables subject to high temperature

Options

  • other diameters: contact us
  • other colours: contact us
  • sleevings cut to length: contact us
  • double braid sleeving up to diameter 10 mm: SILIGAINE® 24C2

(*) Our products comply with all or part of the requirements of standards quoted; contact us.
