Hersteller: SALTEK

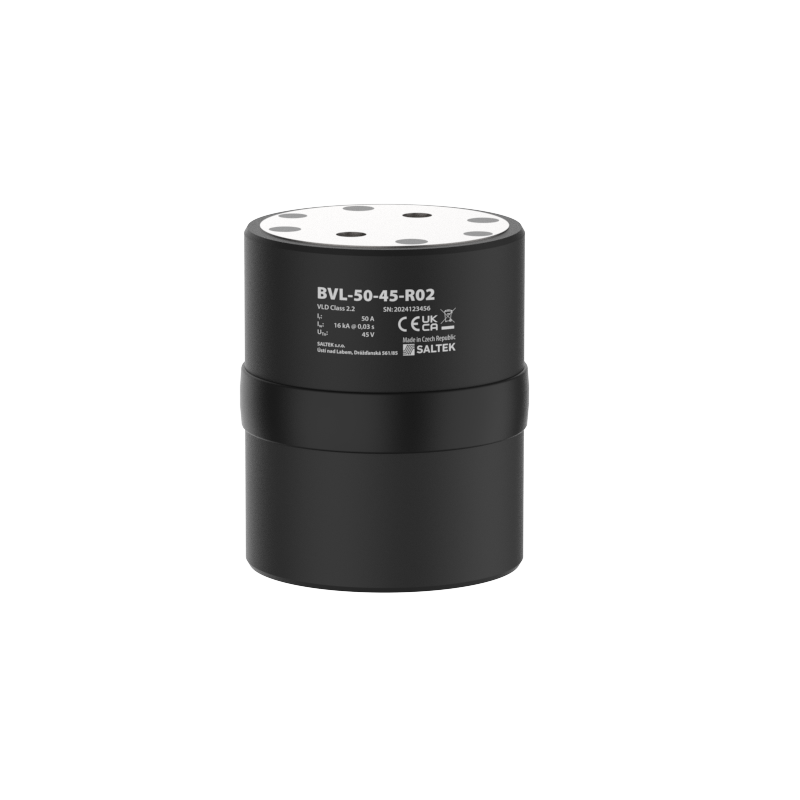

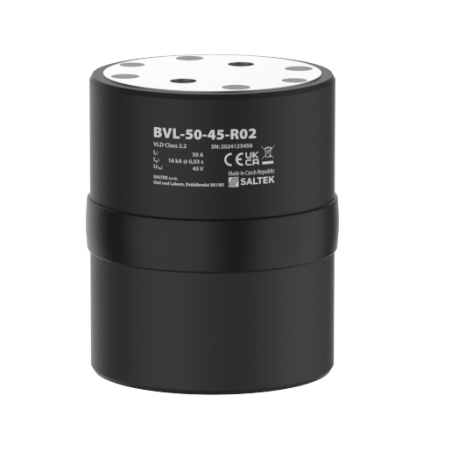

BVL-50-45-R02 - Überspannungsschutz (SPD)

  • BVL-50-45-R02
  • Sicherheitsstufe IP 67
  • VLD-Typ VLD-O+F
  • VLD-Klasse 2.2
Parameter name Parameter value
Class VLD according to EN 50526-2 2.2
Type VLD according to EN 50122-1 VLD-O+F
Rated AC (rms) current (@ 60 min) Ir 50 A
Rated DC current (@ 60min) Ir 50 A
Leakage current at Uw IL < 50 μA
Non-triggering voltage Uw 36.00 V
Maximal short time DC withstand current (@ 30 ms) Iw 16.0 kA
Maximal short time DC withstand current (@ 100 ms) Iw 9.0 kA
Short time AC (rms) withstand current (@ 36 ms) Iw 15.0 kA
High charge impulse (10/350) Iimp-hc 35.00 kA
Lightning current impulse (8/20) Iimp-n 50.00 kA
High current impulse (8/20) Iimp-high 75.00 kA
Nominal triggering voltage UTn 45.00 V
Maximal residual voltage at Iimp-n URES 700.00 V
Maximal residual voltage at Ir URES 1.20 V
Maximal residual voltage at Iw URES 5.00 V
Instantaneous triggering voltage UTi 45.00 V
Response time @ lightning current 25 ns
Response time of thyristors TR < 1,5 ms
Degree of protection IP 67
Range of ambient temperatures (min/max) -40 / 70 °C
According to standard EN 50122-1, EN 50526-2
Weight 2.10 kg
ETIM Class EC003621
Customs tariff number 85301000
EAN 8595090567103
