Hersteller: Mitsubishi

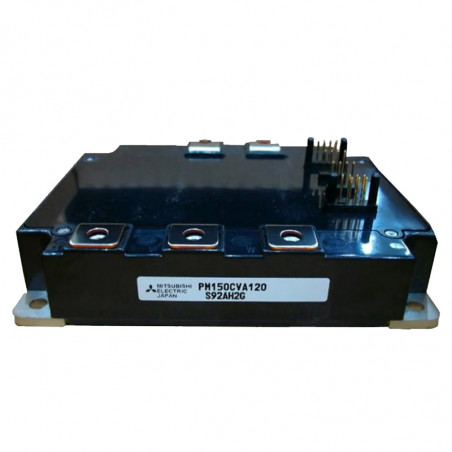

3. Generation IPM (V-Serie)

TypeMaximum parametersV ce(sat) @ Tj=25°C
[V]
Casing
Vces
[V]
Ic
[V]
Pt
[W]
600V
PM75RVA060 600 75 284 2,35 V5
PM100CVA060 600 100 338 2,35 V5
PM150CVA060 600 150 446 2,35 V3
PM200CVA060 600 200 595 2,35 V3
PM300CVA060 600 300 735 2,35 V4
PM400DVA060 600 400 1136 2,35 V1
PM600DVA060 600 600 1390 2,35 V2
1200V
PM50RVA120 1200 50 338 2,65 V5
PM75CVA120 1200 75 500 2,65 V3
PM100CVA120 1200 100 595 2,65 V3
PM150CVA120 1200 150 780 2,65 V4
PM200DVA120 1200 200 962 2,65 V1
PM300DVA120 1200 300 1380 2,65 V2

OC - over-current prot.
SC - short-circuit prot.
OT - over-temp. prot.
UV - under-voltage lock prot.

SymbolInternal functions
D 1 IGBT transistor with driver and protection OC/UV
C 3 phase IGBT with driver and protection SC/OT/UV
R 3 phase IGBT with driver and protection OC/SC/OT/UV

PM400DVA060, PM200DVA120
PM600DVA060, PM300DVA120
PM150CVA060, PM200CVA060, PM75CVA120, PM100CVA120 PM300CVA060, PM150CVA120
PM75RVA060, PM100CVA060, PM50RVA120
