| Type | Maximum parameters | V ce(sat) @ Tj=25°C [V] | Package | ||
|---|---|---|---|---|---|
| Vces [V] | Ic [V] | Pt [W] | |||
| 600V | |||||

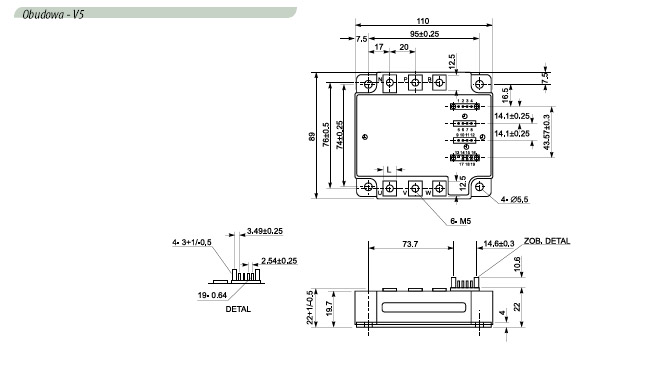

| PM75RVA060 | 600 | 75 | 284 | 2,35 | V5 |
| PM100CVA060 | 600 | 100 | 338 | 2,35 | V5 |

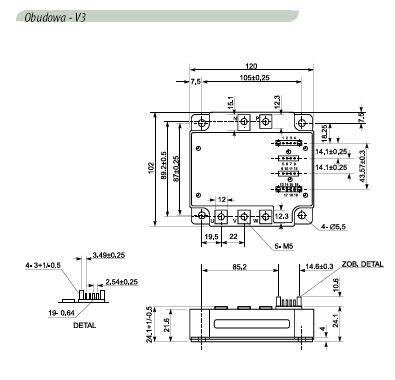

| PM150CVA060 | 600 | 150 | 446 | 2,35 | V3 |
| PM200CVA060 | 600 | 200 | 595 | 2,35 | V3 |

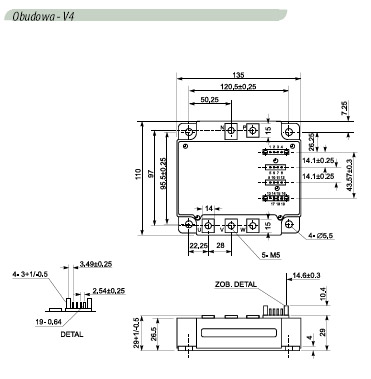

| PM300CVA060 | 600 | 300 | 735 | 2,35 | V4 |

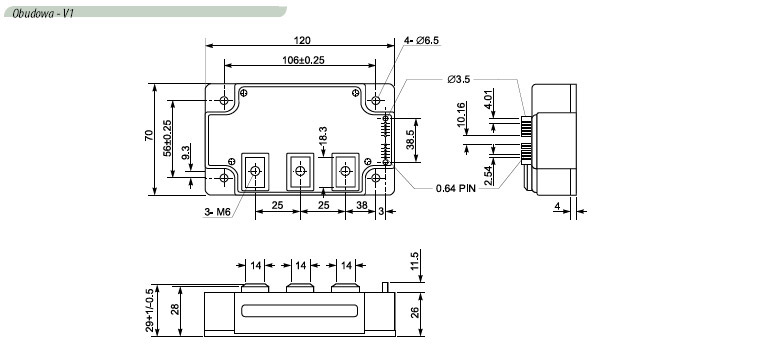

| PM400DVA060 | 600 | 400 | 1136 | 2,35 | V1 |

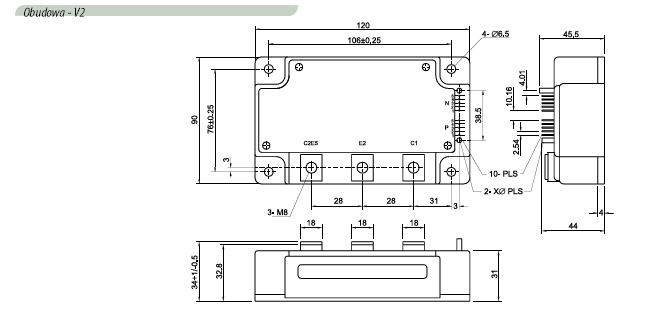

| PM600DVA060 | 600 | 600 | 1390 | 2,35 | V2 |
| 1200V | |||||
| PM50RVA120 | 1200 | 50 | 338 | 2,65 | V5 |
| PM75CVA120 | 1200 | 75 | 500 | 2,65 | V3 |
| PM100CVA120 | 1200 | 100 | 595 | 2,65 | V3 |
| PM150CVA120 | 1200 | 150 | 780 | 2,65 | V4 |
| PM200DVA120 | 1200 | 200 | 962 | 2,65 | V1 |
| PM300DVA120 | 1200 | 300 | 1380 | 2,65 | V2 |
OC - over-current prot.
overload protection
SC - short-circuit prot.
short-circuit protection
OT - over-temp. prot.
temperature protection
UV - under-voltage lock prot.
under-voltage protection
| Symbol | Internal functions |
|---|---|
| D | 1 IGBT transistor with control and OC/UV protection |
| C | 3-phase IGBT system with control and SC/OT/UV protection |
| R | 3-phase IGBT system with control and OC/SC/OT/UV protection |
![]() | |
![]() | |
![]() | ![]() |
![]() | |
