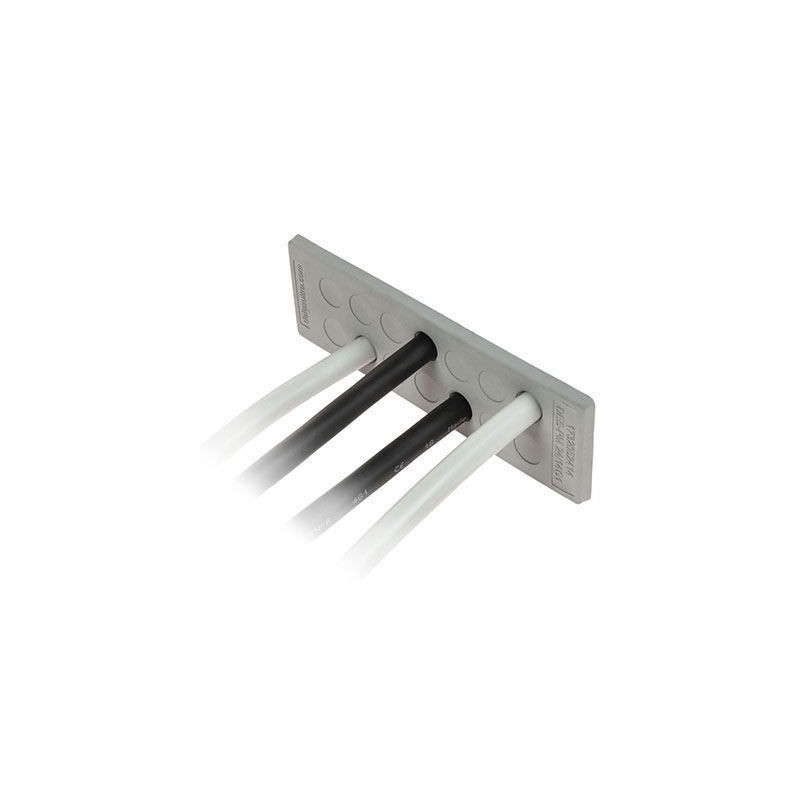

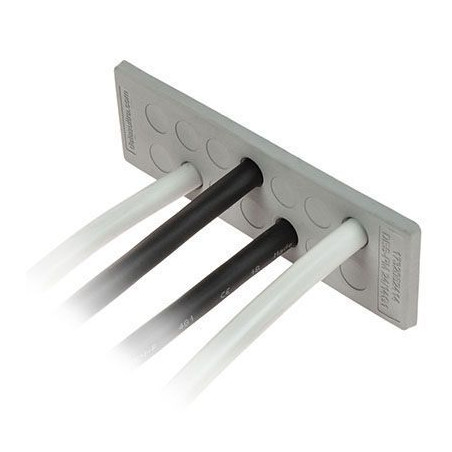

DES PM 24 cable entry plates are an economical and reliable alternative to standard industrial cable glands.
Model | Code | Dimensions [mm] Cut-out | Dimensions [mm] | No. cables - Ø cables [mm] |
---|---|---|---|---|
DES PM 24/12G | 1732052412 | 112 X 36 max. +0,5 | 144 X 46 | 12 - max. 15 |
DES PM 24/14G | 1732052414 | 112 X 36 max. +0,5 | 144 X 46 | 14 - max. 12,1 |
DES PM 24/17G | 1732052417 | 112 X 36 max. +0,5 | 144 X 46 | 5 - max. 10,5 12 - max. 12,6 |
DES PM 24/18G | 1732052418 | 112 X 36 max. +0,5 | 144 X 46 | 4 - max. 6,5 5 - max. 10,5 5 - max. 12,6 4 - max. 16,1 |
DES PM 24/20G | 1732052420 | 112 X 36 max. +0,5 | 144 X 46 | 13 - max. 6,5 7 - max. 12,1 |
DES PM 24/26G | 1732052426 | 112 X 36 max. +0,5 | 144 X 46 | 16 - max. 6,5 4 - max. 12,1 4 - max. 16,1 2 - ASI |
DES PM 24/42G | 1732052442 | 112 X 36 max. +0,5 | 144 X 46 | 1 - max. 4,7 12 - max. 5 17 - max. 6,4 12 - max. 7,2 |
DES PM 24/48G | 1732052448 | 112 X 36 max. +0,5 | 144 X 46 | 48 - max. 6,5 |
DES PM 24/50G | 1732052450 | 112 X 36 max. +0,5 | 144 X 46 | 33 - max. 5, 9 - max. 6,4 8 - max. 8,3 |
DES PM 24/12B | 1732053413 | 112 x 36 max. +0,5 | 144 x 46 | 12 - max. 15 |
DES PM 24/14B | 1732053415 | 112 x 36 max. +0,5 | 144 x 46 | 14 - max. 12,1 |
DES PM 24/17B | 1732053418 | 112 x 36 max. +0,5 | 144 x 46 | 5 - max. 10,5 12 - max. 12,6 |
DES PM 24/18B | 1732053419 | 112 x 36 max. +0,5 | 144 x 46 | 4 - max. 6,5 5 - max. 10,5 5 - max. 12,6 4 - max. 16,1 |
DES PM 24/20B | 1732053421 | 112 x 36 max. +0,5 | 144 x 46 | 13 - max. 6,5 7 - max. 12,1 |
DES PM 24/26B | 1732053427 | 112 x 36 max. +0,5 | 144 x 46 | 16 - max. 6,5 4 - max. 12,1 4 - max. 16,1 2 - ASI |
DES PM 24/42B | 1732053443 | 112 x 36 max. +0,5 | 144 x 46 | 1 - max. 4,7 12 - max. 5 17 - max. 6,4 12 - max. 7,2 |
DES PM 24/48B | 1732053449 | 112 x 36 max. +0,5 | 144 x 46 | 48 - max. 6,5 |
DES PM 24/50B | 1732053451 | 112 x 36 max. +0,5 | 144 x 46 | 33 - max. 5,3 9 - max. 6,4 8 - max. 8,3 |
