Hersteller: DetasUltra

SPP 13B - Tüllen

  • 1731020213
  • Produkttyp Moduły uszczelniające
  • 13 ~ 14

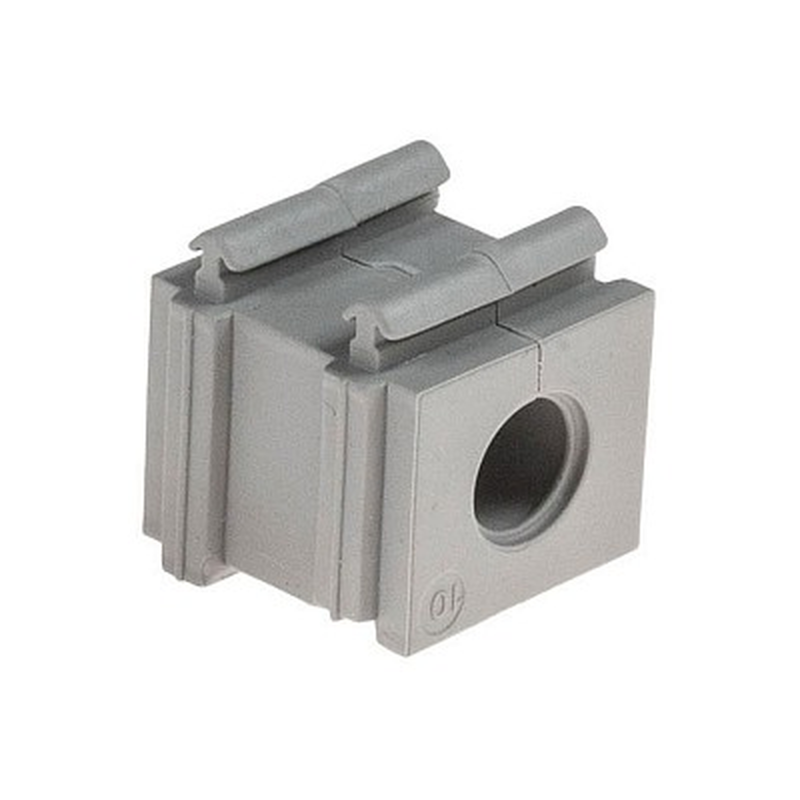

SPP series cable grommets allow a cable with diameter from 2 to 17mm to be routed through DES splittable frames series.

  • Cable gland grommets for cables with diameters from 2 to 17 mm
  • Long lasting product and high resistance to industrial oils.
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPP 0G 1731020100 -
SPP 2G 1731020102 2 ~ 3
SPP 3G 1731020103 3 ~ 4
SPP 4G 1731020104 4 ~ 5
SPP 5G 1731020105 5 ~ 6
SPP 6G 1731020106 6 ~ 7
SPP 7G 1731020107 7 ~ 8
SPP 8G 1731020108 8 ~ 9
SPP 9G 1731020109 9 ~ 10
SPP 10G 1731020110 10 ~ 11
SPP 11G 1731020111 11 ~ 12
SPP 12G 1731020112 12 ~ 13
SPP 13G 1731020113 13 ~ 14
SPP 14G 1731020114 14 ~ 15
SPP 15G 1731020115 15 ~ 16
SPP 16G 1731020116 16 ~ 17
SPP 0B 1731020200 -
SPP 2B 1731020202 2 ~ 3
SPP 3B 1731020203 3 ~ 4
SPP 4B 1731020204 4 ~ 5
SPP 5B 1731020205 5 ~ 6
SPP 6B 1731020206 6 ~ 7
SPP 7B 1731020207 7 ~ 8
SPP 8B 1731020208 8 ~ 9
SPP 9B 1731020209 9 ~ 10
SPP 10B 1731020210 10 ~ 11
SPP 11B 1731020211 11 ~ 12
SPP 12B 1731020212 12 ~ 13
SPP 13B 1731020213 13 ~ 14
SPP 14B 1731020214 14 ~ 15
SPP 15B 1731020215 15 ~ 16
SPP 16B 1731020216 16 ~ 17
SPP0GA 1731320100 -
SPP2GA 1731320102 2 ~ 3
SPP3GA 1731320103 3 ~ 4
SPP 4GA 1731320104 4 ~ 5
SPP5GA 1731320105 5 ~ 6
SPP6GA 1731320106 6 ~ 7
SPP7GA 1731320107 7 ~ 8
SPP8GA 1731320108 8 ~ 9
SPP9GA 1731320109 9 ~ 10
SPP10GA 1731320110 10 ~ 11
SPP11GA 1731320111 11 ~ 12
SPP12GA 1731320112 12 ~ 13
SPP13GA 1731320113 13 ~ 14
SPP14GA 1731320114 14 ~ 15
SPP15GA 1731320115 15 ~ 16
SPP16GA 1731320116 16 ~ 17
SPP 0BA 1731320200 -
SPP 2BA 1731320202 2 ~ 3
SPP 3BA 1731320203 3 ~ 4
SPP 4BA 1731320204 4 ~ 5
SPP 5BA 1731320205 5 ~ 6
SPP 6BA 1731320206 6 ~ 7
SPP 7BA 1731320207 7 ~ 8
SPP 8BA 1731320208 8 ~ 9
SPP 9BA 1731320209 9 ~ 10
SPP 10BA 1731320210 10 ~ 11
SPP 11BA 1731320211 11 ~ 12
SPP 12BA 1731320212 12 ~ 13
SPP 13BA 1731320213 13 ~ 14
SPP 14BA 1731320214 14 ~ 15
SPP 15BA 1731320215 15 ~ 16
SPP 16BA 1731320216 16 ~ 17
