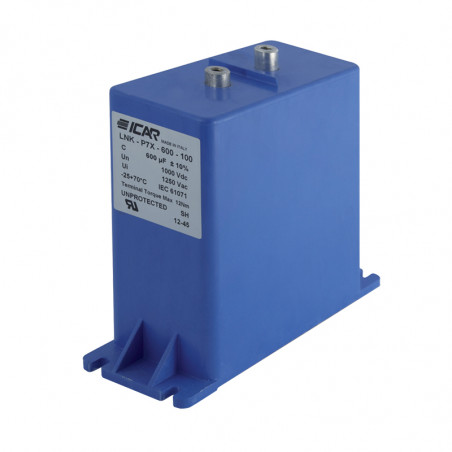

DC Power Capacitors LNK-Serie - P7Y
  • DC Power Capacitors LNK-Serie - P7Y

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Icar

DC Power Capacitors LNK-Serie - P7Y

Capacitors DC series LNK – P7Y

Kondensatory mocy DC seria LNK – P7Y



Typ
[µF]
UN
[V]
Us
[V]
Imax
[A]
IPK
 [kA]
Ls
[nH]
RS
 [mΩ]
Rthn
[°C/W]
f
[kHz]
Weight
[kg]

LNK-P7Y-2000-45

2000 450 680 150 14 30 0,25 4,1 15 2,8

LNK-P7Y-1450-60

1450 600 900 150 12 30 0,29 4,1 15 2,8

LNK-P7Y-1200-80

1200 800 1200 140 11 30 0,32 4,1 15 2,8

LNK-P7Y-850-110

850 1100 1650 130 9,1 30 0,37 4,1 15 2,8

LNK-P7Y-600-130

600 1300 1950 120 7,9 30 0,42 4,1 15 2,8

LNK-P7Y-400-165

400 1650 2475 110 6,5 30 0,5 4,1 15 2,8

LNK-P7Y-290-185

290 1850 2775 100 5,4 30 0,6 4,1 15 2,8

LNK-P7Y-220-200

220 2000 3000 90 4,6 30 0,7 4,1 15 2,8

LNK-P7Y-180-220

180 2200 3300 90 4,2 30 0,75 4,1 15 2,8


Dimensions [mm]

Kondensatory mocy DC seria LNK – P7Y
