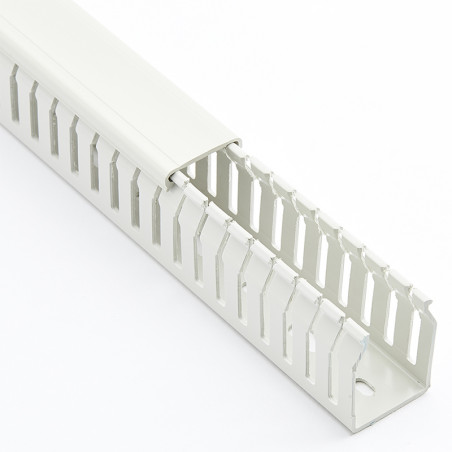

Betadukt - PVC.
  • Betadukt - PVC.

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: BETACABLE

Betadukt - PVC.

Wide comb „Open Slot”

Technical parameters
Material: Self extinguished  PVC
Temperature range: -15OC -  +60OC
Standard: tray base DIN 43659
Flammability: UL94 V-0
Standards UL and Lloyds Register
Compatible to RoHS




Size external diameter Available colours Quantity in package
WxH
[mm]		 Width
[mm]		 Height
[mm]		 grey white black blue pce meters
19 x 50 25 53 + + + ------ 12 24
25 x 37,5 29 41 + + + ------ 12 24
25 x 50 29 54 + + + + 12 24
25 x 75 29 79 + + + + 8 16
25 x 100 30 105 + + + + 8 16
37,5 x 37,5 41 41 + + + + 12 24
37,5 x 50 41 54 + + + + 8 16
37,5 x 75 39 79 + + + + 8 16
37,5 x 100 43 105 + + + + 8 16
50 x 25 54 28 + + + ------ 12 24
50 x 37,5 54 41 + + + ------ 8 16
50 x 50 54 54 + + + + 8 16
50 x 75 55 79 + + + + 8 16
50 x 100 56 105 + + + + 4 8
75 x 37,5 80 41 + + + ------ 8 16
75 x 50 78 54 + + + ------ 8 16
75 x 75 80 80 + + + + 8 16
75 x 100 80 105 + + + + 4 8
100 x 50 107 54 + + + ------ 4 8
100 x 75 107 80 + + + + 4 8
100 x 100 107 104 + + + + 4 8
100 x 125 107 130 + + + ------ 4 8
125 x 75 131 78 + + + ------ 4 8

Grzebień wąski „Narrow Slot”

Parametry techniczne:
Materiał: Samogasnący PVC
Zakres temperatur: -15OC do +60OC
Standard: podstawa koryta DIN 43659
Palność: UL94 V-0
Aprobaty: UL i Lloyds Register
Zgodny z RoHS

Size external diameter Available colours Quantity in package
WxH
[mm]		 Width
[mm]		 Height
[mm]		 grey white black blue pce meters
19 x 50 25 53 + + + ------ 12 24
25 x 37,5 29 41 + + + ------ 12 24
25 x 50 29 54 + + + ------ 12 24
25 x 75 29 79 + + + ------ 8 16
25 x 100 30 105 + + + ------ 8 16
37,5 x 37,5 41 41 + + + ------ 12 24
37,5 x 50 41 54 + + + ------ 8 16
37,5 x 75 39 79 + + + ------ 8 16
37,5 x 100 43 105 + + + ------ 8 16
50 x 25 54 28 + + + ------ 12 24
50 x 37,5 54 41 + + + ------ 8 16
50 x 50 54 54 + + + ------ 8 16
50 x 75 55 79 + + + ------ 8 16
50 x 100 56 105 + + + ------ 4 8
75 x 37,5 80 41 + + + ------ 8 16
75 x 50 78 54 + + + ------ 8 16
75 x 75 80 80 + + + ------ 8 16
75 x 100 80 105 + + + ------ 4 8
100 x 50 107 54 + + + ------ 4 8
100 x 75 107 80 + + + ------ 4 8
100 x 100 107 104 + + + ------ 4 8



Closed comb „Closed Slot”


technical parameters
Material: Self extinguished  PVC
Temprature range: -15OC -  +60OC
Standard: tray base DIN 43659
Flammability: UL94 V-0
Standards UL and Lloyds Register
Compatible to RoHS



Size external diameter Available colours Quantity in package
WxH
[mm]		 Width
[mm]		 Height
[mm]		 grey white black blue pce meters
15 x 15 17 17 + + + ----- 24 48
19 x 50 25 53 + + + ------ 12 24
25 x 37,5 29 41 + + + ------ 12 24
25 x 50 29 54 + + + ------ 12 24
25 x 75 29 79 + + + ------ 8 16
25 x 100 30 105 + + + ------ 8 16
37,5 x 37,5 41 41 + + + ------ 12 24
37,5 x 50 41 54 + + + ------ 8 16
37,5 x 75 39 79 + + + ------ 8 16
37,5 x 100 43 105 + + + ------ 8 16
50 x 25 54 28 + + + ------ 12 24
50 x 37,5 54 41 + + + ------ 8 16
50 x 50 54 54 + + + ------ 8 16
50 x 75 55 79 + + + ------ 8 16
50 x 100 56 105 + + + ------ 4 8
75 x 37,5 80 41 + + + ------ 8 16
75 x 50 78 54 + + + ------ 8 16
75 x 75 80 80 + + + ------ 8 16
75 x 100 80 105 + + + ------ 4 8
100 x 50 107 105 + + + ------ 4 8
100 x 75 107 80 + + + ------ 4 8
100 x 100 107 104 + + + ------ 4 8
125 x 75 131 78 + + + ------ 4 8

Full tray „Solid Wall”

technical parameters
Material: Self extinguished  PVC
Temperature range: -15OC -  +60OC
Standard: tray base DIN 43659
Flammability: UL94 V-0
Standards UL and Lloyds Register
Compatible to RoHS

Size external diameter Available colours Quantity in package
WxH
[mm]		 Width
[mm]		 Height
[mm]		 grey white black blue pce meters
15 x 15 17 17 + + + ----- 24 48
19 x 50 25 53 + + + ------ 12 24
25 x 37,5 29 41 + + + ------ 12 24
25 x 50 29 54 + + + ------ 12 24
25 x 75 29 79 + + + ------ 8 16
25 x 100 30 105 + + + ------ 8 16
37,5 x 37,5 41 41 + + + ------ 12 24
37,5 x 50 41 54 + + + ------ 8 16
37,5 x 75 39 79 + + + ------ 8 16
37,5 x 100 43 105 + + + ------ 8 16
50 x 25 54 28 + + + ------ 12 24
50 x 37,5 54 41 + + + ------ 8 16
50 x 50 54 54 + + + ------ 8 16
50 x 75 55 79 + + + ------ 8 16
50 x 100 56 105 + + + ------ 4 8
75 x 37,5 80 41 + + + ------ 8 16
75 x 50 78 54 + + + ------ 8 16
75 x 75 80 80 + + + ------ 8 16
75 x 100 80 105 + + + ------ 4 8
100 x 50 107 54 + + + ------ 4 8
100 x 75 107 80 + + + ------ 4 8
100 x 100 107 104 + + + ------ 4 8
125 x 75 131 78 + + + ------ 4 8

Accessories

Covers

Size Available colours Quantity in package
WxH
[mm]		 grey white black blue pce meters
15 + + + ------ 12 24
19 + + + ------ 12 24
25 + + + + 12 24
37,5 + + + + 12 24
50 + + + + 12 24
75 + + + + 12 24
100 + + + + 6 12
125 + + + ------ 6 12
