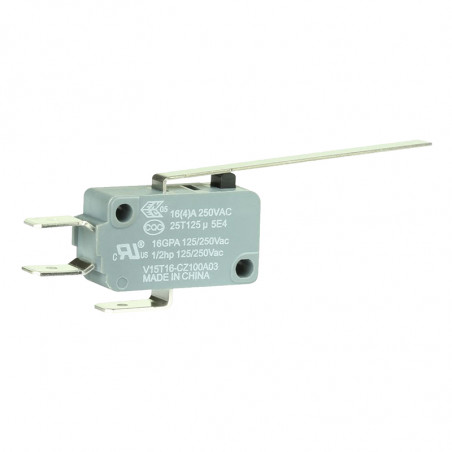

MICRO SWITCH™-Basisschalter V15-Serie

Honeywell’s MICRO SWITCH™ V-Basic Switch Standard, V15 Series, is an electromechanical switch designed for enhanced reliability at a great value. This switch is often ideal for “low-cost-of-failure” – where the cost to replace the switch or to service any failure related to the switch is minimal. The V15 is designed for applications requiring ≥ 100 g of operating force and electrical ratings ranging from 16A to 26A. The V15 Series switch offers a wide range of standard offerings, including a choice of actuators, electrical ratings, operating forces, and circuitry, and holds global approvals (ENEC, CQC, UL, cUL).

FEATURES:
• Broad range of electrical loads
• Straight, roller, simulated roller, and special actuators
• Special terminations available upon request
• Precision operation and application versatility
• Wide temperature range
• Global approvals (ENEC, CQC, UL, cUL))

POTENTIAL APPLICATIONS
• Appliance
• Gaming
• Vending machines
• Water heaters
• Industrial controls

BENEFITS
• Compatible with many applications due to the switches design flexibility, broad range of electrical loads, and actuators
• Accepts insulated connections, most quick connect openings
• Reliability, repeatability within range of conditions



Specifications

Insulation resistance > 100 mΩ (500 V=)
Dielectric strength 1000 V~ (50 Hz/60 Hz, 1 min.)
Contact resistance max. 100 mΩ
Operating frequency - electrical 10 to 30 operations per minute
Operating frequency – mechanical 300 operations per minute max.
Operating speed 0,1 mm – 1 m / s.
Service life mechanical

5 million cycles (operating force < 200 g); 1 million cycles (operating force > 200 g)
Service life electrical 6000 or 50000 operations minimum
Storage temperature -25°C - 100°C
Storage humidity 85 % RH max.
Micro disconnection (μ) < 3 mm contact gap
Agency approvals ENEC, CQC, UL, cUL
Electrical rating
5:00 AM ENEC/CQC:5 (2,5)A, 125 V~/250 V~ (50000 cykli)
10:00 AM UL/cUL: 10A 1% HP, 125 V~/250 V~ (100000 cykli)\
11:00 AM ENEC/CQC; 11(3)A, 125/150V~ UL/cUL; 11(3)A, 125/150V~
16 A ENEC/CQC; 16(4)A, 250 V~ (50000 cykli) UL/cUL; \[&]A HP, 125 V~/250 V~ (6000 cykli)
22 A ENEC/CQC: 22(8)A, 250 V~ (10000 cykli) UL/cUL: 22A 1 HP, 125V~/250V~ (6000 cykli)
26 A ENEC: 26(10)A, 250 V~ (25000 cykli)



DIMENSIONS


CONNECTION DIMENSIONS
C-style quick connect - 6,35 mm wide x 0,8 mm thick

D-style quick connect - 4,80 mm wide x 0,8 mm thick

E- style quick connect - 4,80 mm wide x 0,5 mm thick


STANDARD LEVER OPTIONS

Lever code/Description Outline dimensions
A01/Straight short lever
A02/Standard straight lever
A03/Long straight lever
A04/Simulated roller lever
A05/Short roller lever
A06/Roller lever



NOMENCLATURE TREE


VIS T 16 C Z 200 A 01 XX K
Switch type Temp grade °c Electrical rating Terminal style Circuit code Operating force at pin plunger, max Lever position Lever type Special designator Mounting holes
MICRO SWITCH™ V-Basic Switch Standard (V15 Series) T
T 125		 5 ENEC/CQC: 5 (2.5) A, 125 V~/250 V~ (50000 cycles) CQuick connect 6,35 mm x 0,80 mm [0,250 cali x 0,032 cali] Z
SPDT		 100
100gf 0,98 N		 No lever, pin plunger No lever, pin plunger A special designator letter is used only when Terminal Type is "X" or Actuator/Lever Type is "99" to specify that the terminals or the actuator of the switch is special. Review Product Specification to determine the exact differences. Metric Ø3,1 mm
  H
T150		 10
UL/cUL: 10 A 1½ HP, 125 V~/250 V~ (100000 cycles)		 D Quick connect 4,80 mm x 0,8 mm [0,187 cali x 0,032 cali] P
SPST-NO		 200
200 gf 1,96N		 A
Far from pin plunger		 01
Short straight lever		 K
USA 02,9 mm
  S
T85		 11 ENEC/CQC: 11(3) A, 125/150 V~ 25T85 |i 5E4 UL/cUL: 11(3) A, 125/150 V~ 25T85 |i 5E4 E Quick connect 4,80 mm x 0,5 mm [0,187 cali x 0,020 cali] C
SPST-NC		 300
300 gf 2,94 N		 B
W pobliżu trzpienia		 02
Short straight lever
    16 ENEC/CQC: 16(4)A 250 V~ UL/cUL: 16 1/2HP 125/250 V~ H
Push in		   400
400 gf 3,92 N		   03
long straight lever
    22 ENEC/CQC: 22(8) A, 250 V~ UL/cUL: 22 A 1HP, 125/250 V~         04
Stimulated roller lever
    26
ENEC: 26(10) A, 250 v~		         05
Roller lever
              06
Long roller lever
              99
Special lever
