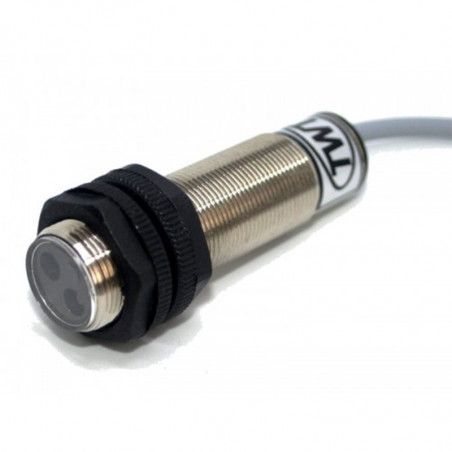

Optische Sensoren, Reflexionslichttaster, TOO-Serie
  • Optische Sensoren, Reflexionslichttaster, TOO-Serie

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: TWT

Optische Sensoren, Reflexionslichttaster, TOO-Serie

Type Sensor Metal casing Sensitivity range Operation range Sensitivity regulation Dimensions drawing nr
TOO12-100ZP NO M12x1 100 0 - 100mm none 1
TOO12-100RP NZ M12x1 100 0 - 100mm none 1
TOO12-200ZP NO M12x1 200 0 - 200mm none 2
TOO12-200RP NZ M12x1 200 0 - 200mm none 2
TOO18-100ZP NO M18x1 100 0 - 100mm potentiometer 3
TOO18-100RP NZ M18x1 100 0 - 100mm potentiometer 3
TOO18-200ZP NO M18x1 200 0 - 200mm potentiometer 4
TOO18-200RP NZ M18x1 200 0 - 200mm potentiometer 4
TOO18-400ZP NO M18x1 4 000 0 - 400mm potentiometer 5
TOO18-400RP NZ M18x1 4 000 0 - 400mm potentiometer 5
TOO18-1000ZP NO M18x1 1000 0 - 1000mm potentiometer 6
TOO18-1000RP NZ M18x1 1000 0 - 1000mm potentiometer 6
TOO30-2000ZP NO M30x1,5 2000 0 - 2000mm potentiometer 7
TOO30-2000RP NZ M30x1,5 2000 0 - 2000mm potentiometer 7

Dimensions [mm]

Drawing 1
Drawing 2
Drawing 3
Drawing 4
Drawing 5
Drawing 6
Drawing 7
