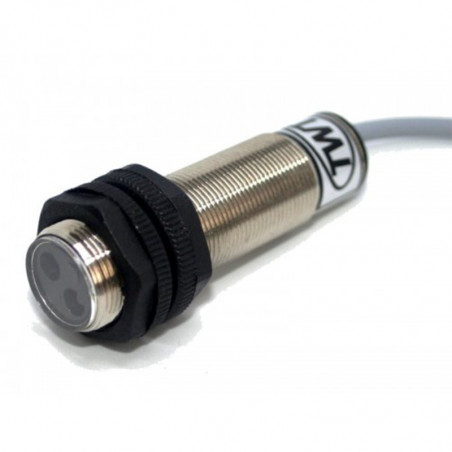

Optic reflection sensors - TOO seriesWymiary obiektu: biały karton 200 x 200 mm. Sposób podłączenia przewód PCW, 2mb, 2x 0,34mm2
Type | Sensor | Metal casing | Sensitivity range | Operation range | Sensitivity regulation | Dimensions drawing nr |
---|---|---|---|---|---|---|
TOO12-100ZP |
NO | M12x1 | 100 | 0- 100mm | none | 1 |
TOO12-100RP |
NC | M12x1 | 100 | 0- 100mm | none | 1 |
TOO12-200ZP |
NO | M12x1 | 200 | 0 - 200mm | none | 2 |
TOO12-200RP |
NC | M12x1 | 200 | 0 - 200mm | none | 2 |
TOO18-100ZP |
NO | M18x1 | 100 | 0 - 100mm | potentiometer | 3 |
TOO18-100RP |
NC | M18x1 | 100 | 0 - 100mm | potentiometer | 3 |
TOO18-200ZP |
NO | M18x1 | 200 | 0 - 200mm | potentiometer | 4 |
TOO18-200RP |
NC | M18x1 | 200 | 0 - 200mm | potentiometer | 4 |
TOO18-400ZP |
NO | M18x1 | 400,0 | 0 - 400mm | potentiometer | 5 |
TOO18-400RP |
NC | M18x1 | 400,0 | 0 - 400mm | potentiometer | 5 |
TOO18-1000ZP |
NO | M18x1 | 1000 | 0 - 1000mm | potentiometer | 6 |
TOO18-1000RP |
NC | M18x1 | 1000 | 0 - 1000mm | potentiometer | 6 |
TOO30-2000ZP |
NO | M30x1,5 | 2000 | 0 - 2000mm | potentiometer | 7 |
TOO30-2000RP |
NC | M30x1,5 | 2000 | 0 - 2000mm | potentiometer | 7 |
Drawing1
![]() |
Drawing2
![]() |
Drawing3
![]() |
Drawing4
![]() |
Drawing5
![]() |
Drawing6
![]() |
Drawing7
![]() |
