Material mit variabler Phase - PCM

  • Rth (K/W)

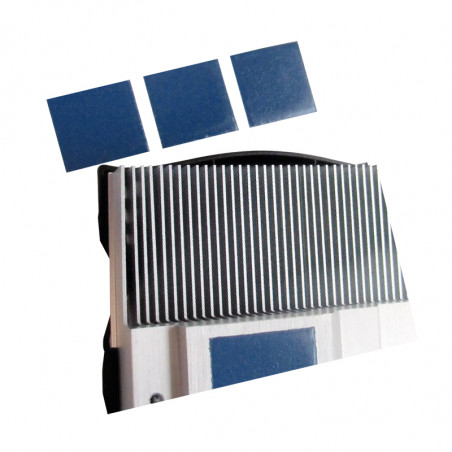

Phase-Change Material - PCM


Phase-Change-Material comprises a combination of hot-melt waxes with or without support. These films smooth out even the smallest irregularities between the power module and heat sink, thereby optimizing the contact between the surfaces and increasing the heat transfer.

Product features
  • Very good thermal performance through
    optimized softening
  • Material fluidity from 46°C
  • Smoothing even smallest surface irregularities
  • Enhanced thermal conductivity
Packaging
Sheets: 450 x 250 mm
Rolls: 500 mm wide
Custom dimensions on request.


Dane techniczne


Material   Thermal conductivity Thermal resistance Thickness
W/mK K/W mm
PCM 471 Filled with hot-setting wax 4.0 0.07 0.2


(*) Rounded values.
