PHC - Polypropylenkondensatoren
  • PHC - Polypropylenkondensatoren

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Icel

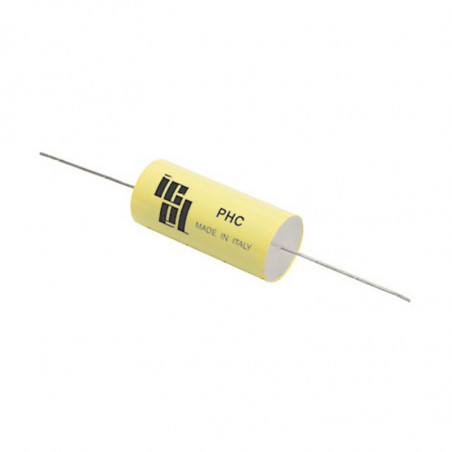

PHC - Polypropylenkondensatoren

Main applications

  • Switching capacitor for industrial and motor speed controls
  • High frequency electronic ballasts, switching mode power supplies,
  • resonant circuits, induction heaters, high-end audio applications


Execution and reference standard

  • Extended metallized film
  • Internal series connection for Ur≥850Vdc
  • Axial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS


PHC Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm)
250 Vdc (160 Vac) 1 ÷ 60 15 ÷ 50 4.5 ÷ 14 9x27 ÷ 38x57
330 Vdc (220 Vac) 0.68 ÷ 40 20 ÷ 60 4.5 ÷ 14 9x27 ÷ 39x57
400 Vdc (250 Vac) 0.47 ÷ 25 25 ÷ 75 4 ÷ 14 9x27 ÷ 37x57
600 Vdc (330 Vac) 0.33 ÷ 15 40 ÷ 95 4 ÷ 14 10x27 ÷ 39x57
700 Vdc (400 Vac) 0.22 ÷ 10 45 ÷ 135 4 ÷ 14 10.5x27 ÷ 39.5x57
850 Vdc (500Vac) 0.1 ÷ 6.8 110 ÷ 375 3.5 ÷ 14 9.5x27 ÷ 39.5x57

Product card - Download
