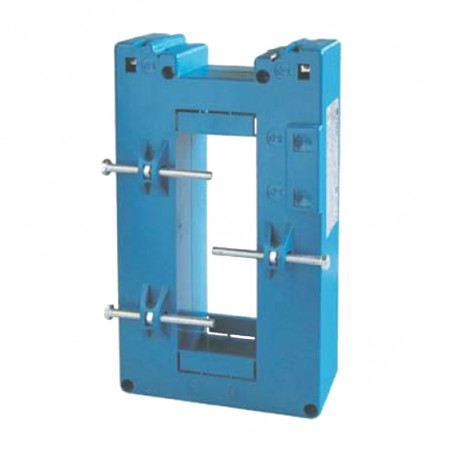

TAT126 Stromtransformator auf der Schiene 105x38mm und 127x38mm
TAT126 Stromtransformator auf der Schiene 105x38mm und 127x38mm

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: FRER

TAT126 Stromtransformator auf der Schiene 105x38mm und 127x38mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <27W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/5 A 3 5

TAT126400X05
500/5 A 4 8

TAT126500X05
600/5 A 6 12

TAT126600X05
800/5 A 8 15

TAT126800X05
1000/5 A 12 20

TAT1261K0X05
1200/5 A 15 30

TAT1261K2X05
1500/5 A 20 40

TAT1261K5X05
2000/5 A 30 60

TAT1262K0X05
2500/5 A 40 80

TAT1262K5X05
3000/5 A 50 80

TAT1263K0X05
4000/5 A 60 100

TAT1264K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
400/1 A 3 5

TAT126400X01
500/1 A 4 8

TAT126500X01
600/1 A 6 12

TAT126600X01
800/1 A 8 15

TAT126800X01
1000/1 A 12 20

TAT1261K0X01
1200/1 A 15 30

TAT1261K2X01
1500/1 A 20 40

TAT1261K5X01
2000/1 A 30 60

TAT1262K0X01
2500/1 A 40 80

TAT1262K5X01
3000/1 A 50 80

TAT1263K0X01
4000/1 A 60 100

TAT1264K0X01



Secondary 5 A

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
400/5A 4 TAT126400K05 1.5 TAT126400L05
500/5A 5 TAT126500K05 1.5 TAT126500L05
600/5A 6 TAT126600K05 2 TAT126600L05
800/5A 8 TAT126800K05 2.5 TAT126800L05
1000/5A 10 TAT1261K0K05 3 TAT1261K0L05
1200/5A 12 TAT1261K2K05 3 TAT1261K2L05
1500/5A 12 TAT1261K5K05 3 TAT1261K5L05
2000/5A 12 TAT1262K0K05 3 TAT1262K0L05
2500/5A 15 TAT1262K5K05 4 TAT1262K5L05
3000/5A 15 TAT1263K0K05 4 TAT1263K0L05
4000/5A 15 TAT1264K0K05 4 TAT1264K0L05



Secondary 1 A

Ratio Code
VA Cl. 5P5 VA Cl. 5P10
400/1A 4 TAT126400K01 1.5 TAT126400L01
500/1A 5 TAT126500K01 1.5 TAT126500L01
600/1A 6 TAT126600K01 2 TAT126600L01
800/1A 8 TAT126800K01 2.5 TAT126800L01
1000/1A 10 TAT1261K0K01 3 TAT1261K0L01
1200/1A 12 TAT1261K2K01 3 TAT1261K2L01
1500/1A 12 TAT1261K5K01 3 TAT1261K5L01
2000/1A 12 TAT1262K0K01 3 TAT1262K0L01
2500/1A 15 TAT1262K5K01 4 TAT1262K5L01
3000/1A 15 TAT1263K0K01 4 TAT1263K0L01
4000/1A 15 TAT1264K0K01 4 TAT1264K0L01


Dimensions

Przekładnik prądowy TAT126 na szynę 105x38mm i 127x38mm wymiary
