Siligaine 15C4 von -60 ° C bis + 250 ° C (H- und C-Klasse)
  • Siligaine 15C4 von -60 ° C bis + 250 ° C (H- und C-Klasse)

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: OMERIN

Siligaine 15C4 von -60 ° C bis + 250 ° C (H- und C-Klasse)

SILIGAINE® 15C4 -60 °C to +250 °C Classes H and C

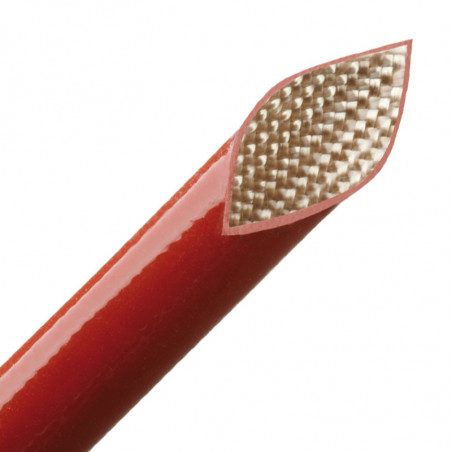

15C4 - FIBREGLASS BRAIDED SLEEVING WITH SILICONE RUBBER COATING

Characteristics
• Continuous operating temperature: -60 °C to +250 °C.
• Good resistance to humidity, ozone and UV
• Good resistance to common chemical environments.
• Compatible with most impregnation varnishes class H.
• Self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441.
• Very good flexibility.
• Halogen-free.
• Dielectric strength (dry): > 4 kV.

Standard products
• Colours: brick red or black.

Packaging
• Diameters from 0.5 to 4.5 mm: 200 m spools.
• Diameters from 5 to 16 mm: 100 m spools.
• Diameters from 18 to 22 mm: 50 m spools.
• Diameters from 25 to 40 mm: 25 m spools.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 400 to 402.
• UL approval, category UZIQ2: meets the requirements of the flame retardant test VW-1. (diameters from 0.5 to 16 mm) File no.: E212701.

Applications
• Internal cabling for rotating machines classes H and C (motors, alternators, generators, transformers, inductors, etc.).
• All insulations up to 250°C permanent in the electric and electronic constructions, heating appliances, lighting, automobile, measuring, control, etc.

Options
• More flexible sleeving (thin walls): SILIGAINE® 15C4L.
• Other diameters: contact us.
• Other colours: contact us.
• Other colours: contact us.





INTERNAL DIAMETER SILIGAINE 15C3
Nominal value (mm) Tolerance (mm) Approximate wall thickness (mm) Approximate linear weight (kg/km)
0.5 ±0.15 0.40 3.3
0.8 ±0.15 0.40 3.9
1 ±0.20 0.40 4.2
1.5 ±0.20 0.40 5.2
2 ± 0.20 0.40 6.3
2.5 ± 0.20 0.40 7.4
3 ± 0.20 0.40 8.6
3.5 ± 0.25 0.40 9.9
4 ± 0.25 0.60 11.3
4.5 ± 0.25 0.60 12.8
5 ± 0.25 0.60 14.3
6 ± 0.25 0.60 17.6
7 ± 0.25 0.60 21.2
8 ± 0.25 0.60 25.2
9 ± 0.50 0.80 29.4
10 ± 0.50 0.80 34.0
12 ± 0.50 0.80 56.9
14 ± 1.0 0.80 74.0
16 ± 1.0 0.90 100
18 ± 1.0 1.00 123
20 ± 1.0 1.00 147
22 ± 1.0 1.00 171
25 ± 1.0 1.20 207
30 ± 2.0 1.30 272
35 ± 2.0 1.50 358
40 ± 2.0 1.50 455
