Hersteller: SALTEK

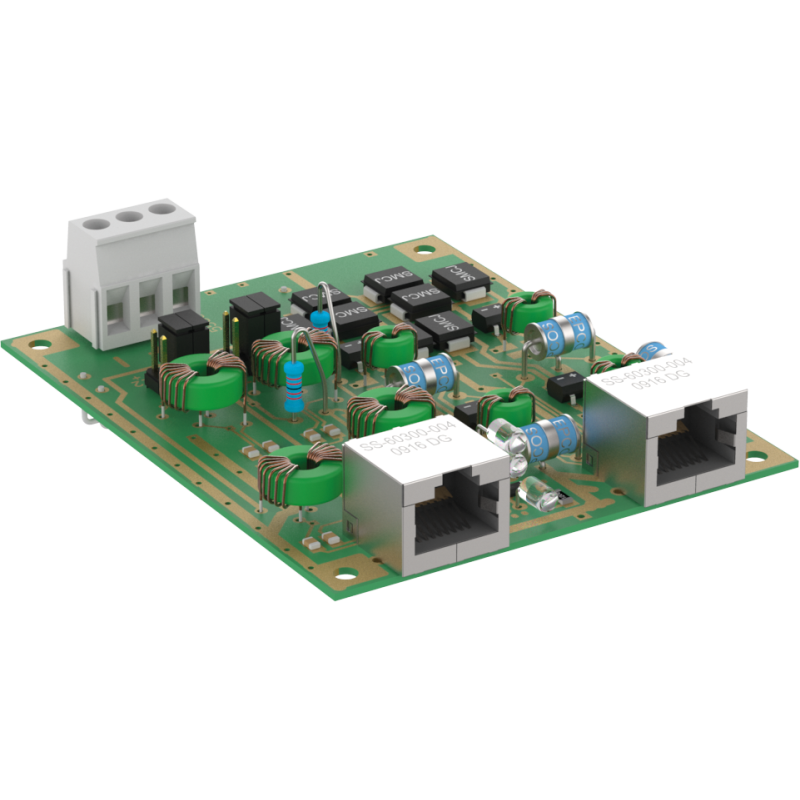

DL-1G-POE-PCB-INJECTOR - Überspannungsschutz (SPD)

  • DL-1G-POE-PCB-INJECTOR
  • Sicherheitsstufe IP 20
  • SPD-Typ D1,C2,C3
  • Maximale Betriebsspannung 8.50 V DC
Parameter name Parameter value
Type of SPD D1,C2,C3
Location of SPD ST 1+2+3
Mounting DL-CS-RACK-1U-INJECTOR
Maximum operating voltage Uc 8.50 V DC
Maximum operating voltage POE Uc 58.00 V DC
Nominal load current per core at 25 °C IL 0.5 A
Treshold frequency core-core f 250.00 MHz
Insertion attenuation at treshhold frequency 1.20 dB
D1 total discharge current (10/350 µs) cores-PE ITotal 2.00 kA
C2 nominal discharge current (8/20 µs) per core In 0.15 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 10.00 kA
C2 voltage protection level mode core-PE at In = 1,25 kA Up 700.00 V
C2 voltage protection level mode core-core at In Up 70 V
C3 voltage protection level mode (POE) at 1 kV/µs 80.00 V
C2 voltage protection level mode (POE) at In = 1,25 kA Uc 90.00 V
C3 voltage protection level mode core-PE at 1 kV/µs Up 500 V
C3 voltage protection level mode core-core at 1 kV/µs Up 80 V
Response time core-core ta 1 ns
Response time core-PE ta 100 ns
Connection (input - output) RJ 45/RJ 45
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
Customs tariff number 85363030
EAN 8595090565703
