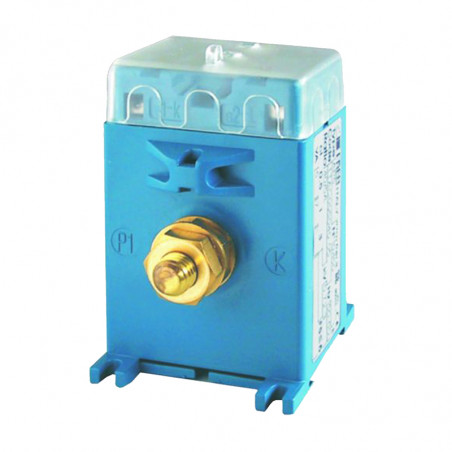

TAC005 Stromtransformator mit Primärwicklung
TAC005 Stromtransformator mit Primärwicklung

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: FRER

TAC005 Stromtransformator mit Primärwicklung

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <2W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
5/5 A 5 7

TAC005005X05
10/5 A 5 7

TAC005010X05
15/5 A 5 7

TAC005015X05
20/5 A 5 7

TAC005020X05
25/5 A 5 7

TAC005025X05
30/5 A 5 7

TAC005030X05
40/5 A 5 7

TAC005040X05
50/5 A 5 7

TAC005050X05
60/5 A 5 7

TAC005060X05
80/5 A 5 7

TAC005080X05
100/5 A 5 7

TAC005100X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
5/1 A 5 7

TAC005005X01
10/1 A 5 7

TAC005010X01
15/1 A 5 7

TAC005015X01
20/1 A 5 7

TAC005020X01
25/1 A 5 7

TAC005025X01
30/1 A 5 7

TAC005030X01
40/1 A 5 7

TAC005040X01
50/1 A 5 7

TAC005050X01
60/1 A 5 7

TAC005060X01
80/1 A 5 7

TAC005080X01
100/1 A 5 7

TAC005100X01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
5/5A 1 TAC005005J05 2.5 TAC005005Y05 1.5 TAC005005S05
10/5A 1 TAC005010J05 2.5 TAC005010Y05 1.5 TAC005010S05
15/5A 1 TAC005015J05 2.5 TAC005015Y05 1.5 TAC005015S05
20/5A 1 TAC005020J05 2.5 TAC005020Y05 1.5 TAC005020S05
25/5A 1 TAC005025J05 2.5 TAC005025Y05 1.5 TAC005025S05
30/5A 1 TAC005030J05 2.5 TAC005030Y05 1.5 TAC005030S05
40/5A 1 TAC005040J05 2.5 TAC005040Y05 1.5 TAC005040S05
50/5A 1 TAC005050J05 2.5 TAC005050Y05 1.5 TAC005050S05
60/5A 1 TAC005060J05 2.5 TAC005060Y05 1.5 TAC005060S05
80/5A 1 TAC005080J05 2.5 TAC005080Y05 1.5 TAC005080S05
100/5A 1 TAC005100J05 2.5 TAC005100Y05 1.5 TAC005100S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
5/1A 1 TAC005005J01 2.5 TAC005005Y01 1.5 TAC005005S01
10/1A 1 TAC005010J01 2.5 TAC005010Y01 1.5 TAC005010S01
15/1A 1 TAC005015J01 2.5 TAC005015Y01 1.5 TAC005015S01
20/1A 1 TAC005020J01 2.5 TAC005020Y01 1.5 TAC005020S01
25/1A 1 TAC005025J01 2.5 TAC005025Y01 1.5 TAC005025S01
30/1A 1 TAC005030J01 2.5 TAC005030Y01 1.5 TAC005030S01
40/1A 1 TAC005040J01 2.5 TAC005040Y01 1.5 TAC005040S01
50/1A 1 TAC005050J01 2.5 TAC005050Y01 1.5 TAC005050S01
60/1A 1 TAC005060J01 2.5 TAC005060Y01 1.5 TAC005060S01
80/1A 1 TAC005080J01 2.5 TAC005080Y01 1.5 TAC005080S01
100/1A 1 TAC005100J01 2.5 TAC005100Y01 1.5 TAC005100S01



SECONDARY 5 A - Protection

Ratio Code
VA Cl. 5P5
5/5A 1 TAC005005K05
10/5A 1 TAC005010K05
15/5A 1 TAC005015K05
20/5A 1 TAC005020K05
25/5A 1 TAC005025K05
30/5A 1 TAC005030K05
40/5A 1 TAC005040K05
50/5A 1 TAC005050K05
60/5A 1 TAC005060K05
80/5A 1 TAC005080K05
100/5A 1 TAC005100K05



SECONDARY 1 A - Protection

Ratio Code
VA Cl. 5P5
5/1A 1 TAC005005K01
10/1A 1 TAC005010K01
15/1A 1 TAC005015K01
20/1A 1 TAC005020K01
25/1A 1 TAC005025K01
30/1A 1 TAC005030K01
40/1A 1 TAC005040K01
50/1A 1 TAC005050K01
60/1A 1 TAC005060K01
80/1A 1 TAC005080K01
100/1A 1 TAC005100K01


Dimensions

Przekładnik prądowy TAC005 z uzwojeniem pierwotnym wymiar Przekładnik prądowy TAC005 z uzwojeniem pierwotnym wymiar
