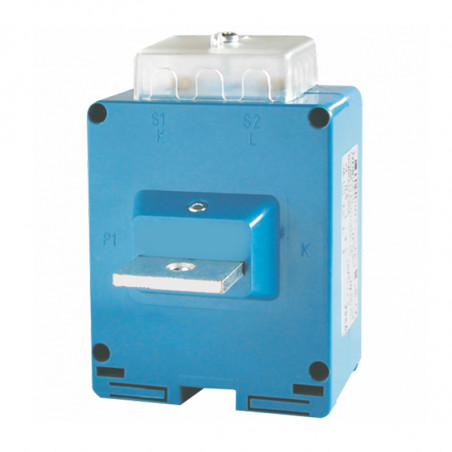

TAC010 Stromtransformator mit Primärwicklung
TAC010 Stromtransformator mit Primärwicklung

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: FRER

TAC010 Stromtransformator mit Primärwicklung

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <2.5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2

Ratio Burdens [VA] Code
cl. 0.5 cl.1 5 A 1 A
5 A 10 20

TAC010005X05

TAC010005X01
10 A 10 20

TAC010010X05

TAC010010X01
15 A 10 20

TAC010015X05

TAC010015X01
20 A 10 20

TAC010020X05

TAC010020X01
25 A 10 20

TAC010025X05

TAC010025X01
30 A 10 20

TAC010030X05

TAC010030X01
40 A 10 20

TAC010040X05

TAC010040X01
50 A 10 20

TAC010050X05

TAC010050X01
60 A 10 20

TAC010060X05

TAC010060X01
80 A 10 20

TAC010080X05

TAC010080X01
100 A 10 20

TAC010100X05

TAC010100X01
120 A 10 20

TAC010120X05

TAC010120X01
150 A 10 20

TAC010150X05

TAC010150X01
200 A 10 20

TAC010200X05

TAC010200X01
250 A 10 20

TAC010250X05

TAC010250X01
300 A 10 20

TAC010300X05

TAC010300X01
400 A 10 20

TAC010400X05

TAC010400X01
500 A 10 20

TAC010500X05

TAC010500X01
600 A 10 20

TAC010600X05

TAC010600X01



SECONDARY 5 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
5/5A 10 TAC010005J05 10 TAC010005Y05 5 TAC010005S05
10/5A 10 TAC010010J05 10 TAC010010Y05 5 TAC010010S05
15/5A 10 TAC010015J05 10 TAC010015Y05 5 TAC010015S05
20/5A 10 TAC010020J05 10 TAC010020Y05 5 TAC010020S05
25/5A 10 TAC010025J05 10 TAC010025Y05 5 TAC010025S05
30/5A 10 TAC010030J05 10 TAC010030Y05 5 TAC010030S05
40/5A 10 TAC010040J05 10 TAC010040Y05 5 TAC010040S05
50/5A 10 TAC010050J05 10 TAC010050Y05 5 TAC010050S05
60/5A 10 TAC010060J05 10 TAC010060Y05 5 TAC010060S05
80/5A 10 TAC010080J05 10 TAC010080Y05 5 TAC010080S05
100/5A 10 TAC010100J05 10 TAC010100Y05 5 TAC010100S05
150/5A 10 TAC010150J05 10 TAC010150Y05 5 TAC010150S05
200/5A 10 TAC010200J05 10 TAC010200Y05 5 TAC010200S05
250/5A 10 TAC010250J05 10 TAC010250Y05 5 TAC010250S05
300/5A 10 TAC010300J05 10 TAC010300Y05 5 TAC010300S05
400/5A 10 TAC010400J05 10 TAC010400Y05 5 TAC010400S05
500/5A 10 TAC010500J05 10 TAC010500Y05 5 TAC010500S05
600/5A 10 TAC010600J05 10 TAC010600Y05 5 TAC010600S05



SECONDARY 1 A

Ratio Code
VA Cl. 0,2 VA Cl. 0,5S VA Cl. 0,2S
5/1A 10 TAC010005J01 10 TAC010005Y01 5 TAC010005S01
10/1A 10 TAC010010J01 10 TAC010010Y01 5 TAC010010S01
15/1A 10 TAC010015J01 10 TAC010015Y01 5 TAC010015S01
20/1A 10 TAC010020J01 10 TAC010020Y01 5 TAC010020S01
25/1A 10 TAC010025J01 10 TAC010025Y01 5 TAC010025S01
30/1A 10 TAC010030J01 10 TAC010030Y01 5 TAC010030S01
40/1A 10 TAC010040J01 10 TAC010040Y01 5 TAC010040S01
50/1A 10 TAC010050J01 10 TAC010050Y01 5 TAC010050S01
60/1A 10 TAC010060J01 10 TAC010060Y01 5 TAC010060S01
80/1A 10 TAC010080J01 10 TAC010080Y01 5 TAC010080S01
100/1A 10 TAC010100J01 10 TAC010100Y01 5 TAC010100S01
150/1A 10 TAC010150J01 10 TAC010150Y01 5 TAC010150S01
200/1A 10 TAC010200J01 10 TAC010200Y01 5 TAC010200S01
250/1A 10 TAC010250J01 10 TAC010250Y01 5 TAC010250S01
300/1A 10 TAC010300J01 10 TAC010300Y01 5 TAC010300S01
400/1A 10 TAC010400J01 10 TAC010400Y01 5 TAC010400S01
500/1A 10 TAC010500J01 10 TAC010500Y01 5 TAC010500S01
600/1A 10 TAC010600J01 10 TAC010600Y01 5 TAC010600S01


Dimensions

Przekładnik prądowy TAC010 z uzwojeniem pierwotnym wymiary
