Hersteller: DACPOL

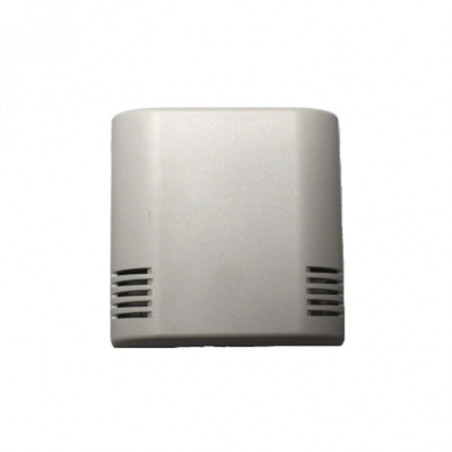

ACT-51 Umgebungstemperatursensor

Temperature sensor for room temperature measurements - especially in air conditioning  (HVAC).
Esthetic plastic casing ABS, adapted to assembly with two screws.


Dimensions:

SPECIFICATION:
SENSOR TECHNICAL PARAMETERS
Measurement resistor Version Characteristic Measurement range Accuracy class Max measurement current Connection type
1xPt100
2xPt100		 normal shockproof according to PN-EN-60751 from -30°C
up to +70°C		 B 8 mA 2 cables
A 5 mA 3, 4
cables
1/3 B DIN 2 mA

Casing
Material Temperature rang [°C] Dimensions[mm] Protection level
Tworzywo ABS -30°C..+70°C 80 x 80 x 25 IP 40

Dynamic properties(in air)

Time constant Time
T0,63 (0 m/s) 40 s
T0,63 (2 m/s) 10 s


Marking:

A. Resistor type
 A

Single Pt100
 1xPt100

Double Pt1000
 1xPt1000

Single Ni100
 1xNi100
B. Accuracy class
 B

B
 B

A
 A

1/3 B DIN
 1/3 B DIN
C. Connection
 C

2 – cables
 2p

3 – cables
 3p

4 – cables
 4p
D. Max operation temperature
 D

T
 give in  OC
E. Cable length
 E
    give type and range in  °C
F. Sensor version
 F

normal
 Z

shockproof
 W



Weniger
