Hersteller: Rolec

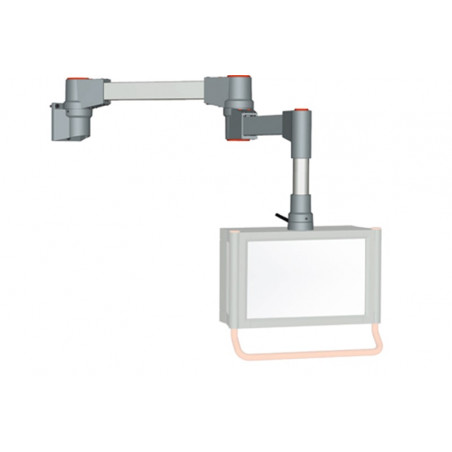

Taraplus-Beckhoff - Support Rüstungssystem

taraPLUS-Beckhoff ist für leichte bis mittlere Lasten ausgelegt. Es lässt sich schnell und einfach vor Ort montieren. Große Öffnungen in den Systemkomponenten ermöglichen eine unkomplizierte Kabelführung. Die spezielle Beckhoff-Konstruktion kombiniert runde und eckige Profile und gewährleistet so eine hohe statische Stabilität. taraPLUS ist ein bewährtes System mit Schutzart IP 54.


Systemkomponenten

Typ Teilenummer Gewicht (g) Material
Steckverbindung 149.005.010 2450 G Al Si 12 Download
Vertikales Zuggelenk 149.005.011 1700 G Al Si 12 Download
Wandverbindung 149.010.010 2750 G Al Si 12 Download
Wandfuge, vertikal 149.010.011 2000 G Al Si 12 Download
149.015.010 3000 G Al Si 12 Download
Winkel 48 149.020.010 800 G Al Si 12 Download
Winkelklammer 70 149.020.011 1800 G Al Si 12 Download
taraPLUS / QUADRO 50 Winkelhalterung 149.021.010 1480 G Al Si 12 Download
Steckverbindung 149.040.010 2300 G Al Si 12 Download

Carrier Profil

3600 1000 >Herunterladen
Typ Teilenummer Gewicht (g) Profillänge
Beckhoff Rundrohr Ø70 250 mm 144.340.250 1725 250 Download
Beckhoff Rundrohr Ø70 500 mm 144.340.500 3450 500 Download
Beckhoff Rundrohr Ø70 1000 mm 144.341.000 6900 1000 Download
Beckhoff Rundrohr Ø70 1500 mm 144.341.500 10350 1500 Download
Beckhoff Rundrohr Ø70 2000 mm 144.342.000 13800 2000 Download
Beckhoff Rechteckrohr 60/40 250 mm 144.350.250 900 250 Download
Beckhoff Rechteckrohr 60/40 500 mm 144.350.500 1800 500 Download
Beckhoff Rechteckrohr 60/40 750 mm 144.350.750 2700 750 Download
Beckhoff Rechteckrohr 60/40 1000 mm 144.351.000 3600 1000 Download
Beckhoff Rechteckrohr 60/40 1500 mm 144.351.500 5400 1500 Download
Beckhoff Rundrohr Ø48 250 mm 144.380.250 900 250 Download
Beckhoff Rundrohr Ø48 500 mm 144.380.500 1800 500 Download
Beckhoff Rundrohr Ø48 750 mm 144.380.750 2700 750 Download
144.381.000

Connector

149.025.511 480 G Al Si 12 >Download
Type Teilenummer Gewicht (g) Material
P-Verbinder 149.025.011 1350 G Al Si 12 Download
Desktop-Connector 149.025.012 1050 G Al Si 12 Download
P-Tischverbinder, stehend 149.025.013 2150 G Al Si 12 Download
P-Typ-Tischverbinder, hängend 149.025.014 2150 G Al Si 12 Download
Drehverbinder, hängend 149.025.510 480 G Al Si 12 Download
Verbinder, stehend
Foot 48 149.030.010 700 G Al Si 12 Download
Fußzeile 70 149.030.011 1150 G Al Si 12 Download
Winkelverbinder 149.035.010 1100 G Al Si 12 Download
Abgewinkelter, drehbarer Desktop-Anschluss 149.035.012 1500 G Al Si 12 Download
Winkel-, Tisch-, neig- und schwenkbarer, stehender Verbinder 149.035.013 2600 G Al Si 12 Download
Abgewinkelter, neig- und schwenkbarer Hängeverbinder für den Schreibtisch 149.035.015 2600 G Al Si 12 Download
Wandverbinder, neigbar 149.045.010 3500 G Al Si 12 Download
Eine externe Halterung Eine externe Halterung
B Klemmleistenhalter B Klemmleistenhalter
BF-Batteriekammer BF-Batteriekammer
C Farbige Streifen, die Overlays abdecken C Farbige Streifen/Abdeckende Overlays
D Silikon-Abdeckungsdichtung D Silikon-Abdeckungsdichtung
DA Alu-Endkappen DA Alu-Endkappen
DH Deckelhalter DH Deckelhalter
DP POM-Kappen DP POM-Kappen
DV-Doppelbit-Schloss DV-Doppelbit-Schloss
EMV-Abschirmung EMV-Abschirmung
EP Elektrolytisches Polieren EP Elektrolytisches Polieren
F Selbstklebende Frontplatte F Selbstklebende Frontplatte
FE-Sucher FE-Sucher
H Handschraube H Handschraube
HG multiPANEL-Halter HG multiPANEL-Halter
HS Haltescharnier HS Haltescharnier
Ich behandle das System Ich behandle das System
ID Integrierte Abdeckgriffe ID Integrierte Abdeckgriffe
IN-Inbusschraube IN-Inbusschraube
IS Verstecktes externes Scharnier IS Verstecktes externes Scharnier
J Handgriff J Handgriff
L Korrosionsschutz L Korrosionsschutz
LH Leiterplattenhalter Linker Leiterplattenhalter
M-Montageplatten M-Montageplatten
MH-Masthalterung MH-Masthalterung
P Dichtungssatz P Dichtungssatz
P 60 Desktop, Tiefe 60 mm P 60 Desktop, Tiefe 60 mm
P 90 Desktop, Tiefe 90 mm P 90 Desktop, Tiefe 90 mm
PR-Profil-Griffsystem PR-Profil-Griffsystem
Q Tragelement quer Q Tragelement quer
RS Rückwand mit Scharnier RS Rückwand mit Scharnier
S-Scharniere S-Scharniere
SF-Schnappfüße SF-Schnappfüße
SH Schutzhülle SH Schutzhülle
ST Schloss mit Schlüssel ST Schloss mit Schlüssel
SV Snap-in-Anschlüsse SV Snap-in-Anschlüsse
SZ Riegelverbinder mit Schloss SZ Riegelverbinder mit Schloss
T Tragschienen für serielle Terminals T Tragschienen für serielle Terminals
TM Tastatur-/Mausbereich TM Tastatur-/Mausbereich
V Screw closure with a slot V Screw / closure with a slot
VR Screwed rear panel VR Screwed rear panel
W Screw closure with socket W Screw / closure with triangular socket
WA Wall Connection WA Wall Connection
Weniger
