Hersteller: Sisel

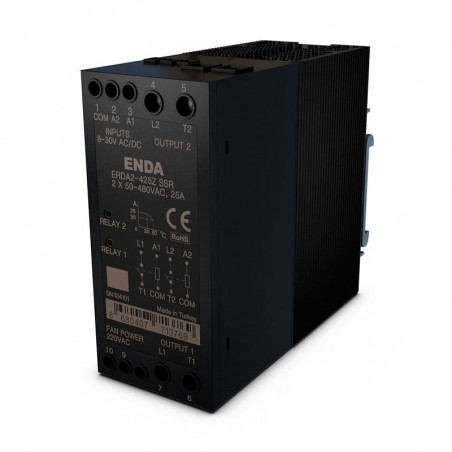

Doppel-Halbleiterrelais, die mit einem Kühler auf einer DIN-Schiene integriert sind

Rail Mountable Solid State Relays With Integrated Heat Sink

Specification
2x25A or 2x40A AC load current.
280 or 480V AC load voltage.
8-30V AC/DC or 90-240V AC input voltage.
LED status indicators for input voltages.
Zero-cross switching.
Applicable for three phase loads.
Built-in varistor protection.
Rail mountable.
CE marked according to European Norms.



Environmental conditions
Ambient/storage temperature -25... +60 C / -30... +100 C (In the environment icing and condensation should not be.)
Overvoltage category II
Altitude max. 1000m
Protection IP20 According to EN60529

Output
Order Code

ERxA2-225Z

ERxA2-240Z-F

ERxA2-425Z

ERxA2-440Z-F

Load current, AC51/25ºC (Arms) 2x25 2x40 2x25 2x40
Load voltage (Vrms) 24 - 280 50 - 480
Overload current t=1s/25°C (Arms) 85 150 70 110
Non rep.surge current/25°C (Arms) 250 400 190 290
On-state voltage drop (Vrms) 1,6 1,8
Leakage current (mArms) 5 8
I²t for fusing  t=10ms (A²s) 340 880 265 610
Frequency (Hz) 50 - 60 50 - 60
Min. operating current (mArms) 160 200

Input

Order Code

ERDA2-xxxZ

ERAA2-xxxZ

Input voltage 2 x 8 - 30Vac/dc 2 x 90 - 240Vac
Pick-up voltage > 6Vac/dc > 75Vac
Drop-out voltage < 2Vac/dc < 6Vac
Input current < 2 x 17mAac/2 x10mAdc < 2 x 8mAac
Turn-on time Maximum ½ Period Maximum 1 Period
Turn-off time Maximum ½ Period Maximum 1 Period
LED indicator If the input voltage  >6V ac/dc, LED lights up. If the input voltage  >75V ac, LED lights up.

General

Order Code

ERxA2-x25Z

ERxA2-x40Z-F

Dimensions G46xY100xD117mm G46xY110xD117mm
Weight Approx. 475 g (After packaging) Approx. 500 g (After packaging)
Isolation Voltage 2500 Vrms 1 between I/O terminals for 1 min.
Product standard EN 60947-4-3
Mounting Rail mountable (EN60715,TH35 or G-32)
Enclosure material Self extinguishing plastics.(According to EN60695-11-10 V-O)
Fan (option) Thermostat-controlled,operates at 50°C.. Fan supply: 90-240Vac.

Dimensions

Podwójne przekaźniki półprzewodnikowe zintegrowane z radiatorem na szynę DIN wymiary Podwójne przekaźniki półprzewodnikowe zintegrowane z radiatorem na szynę DIN wymiar

Characteristic
Connection diagram

Connection examples

Single Phase Load Application Three Phase Load Application With The Two SSRs
Podwójne przekaźniki półprzewodnikowe zintegrowane z radiatorem na szynę DIN aplikacja 1-fazowa Podwójne przekaźniki półprzewodnikowe zintegrowane z radiatorem na szynę DIN aplikacja 3-fazowa
