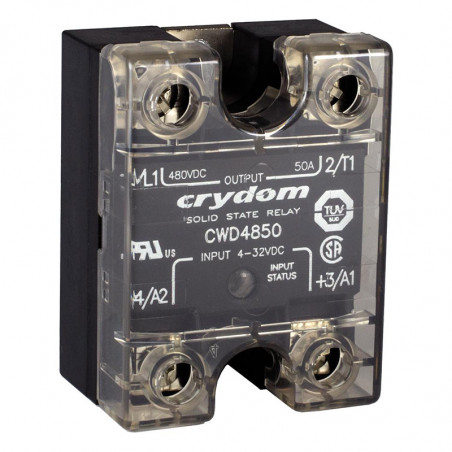

Halbleiterrelais Einphasen-Wechselstrom-Serie CWA und CWD

Technical data:

Insulation voltage 4000 VRMS
Input/output capacity 8 pF
Operation temperature range -30°C - 80°C
Operation frequency range 47-63 Hz
Switching on method at 0 voltage
Build in diode for turning on signalization.
Available options:
10 - imidiate turn on
E - Control voltage18-36VAC
P - Internal overvoltage protection
(not recommended for capacity load)
S - internal „SNUBBER"
H - Foil for better heat dissipation

Symbol Symbol Input data Output data Chart
CWA series CWD series
Control voltage
VRMS AC		 Input current
[mA]		 Control voltage
VDC		 Input current
[mA]		 Load current
ARMS		 Voltage range
VRMS		 Max. voltage
Vpeak		 I2t
[A2s]
CWA2410 CWD2410 90 - 280 6 (120VRMS) 3-32 10(12VDC) 0,15-10 24 - 280 600 660 1
CWA2425 CWD2425 0,15 -25 24 - 280 600 1500 2
CWA2450 CWD2450 0,15-50 24 - 280 600 300 3
CWA2490 CWD2490 0,15 -90 24 - 280 600 7560 4
CWA24125 CWD24125 0,15- 125 24 - 280 600 16600 5
CWA4810 CWD4810 90 - 280 6 (120VRMS) 3 -32 10(12VDC) 0,15-10 48 - 660 1200 660 1
CWA4825 CWD4825 0,15-25 48 - 660 1200 1500 2
CWA4850 CWD4850 0,15-50 48 - 660 1200 300 3
CWA4890 CWD4890 0,15 -90 48 - 660 1200 7560 4
CWA48125 CWD48125 0,15 - 125 48 - 660 1200 16600 5

Drawing 1
 Drawing 2
Drawing 3
 Drawing 4
 Drawing 5
