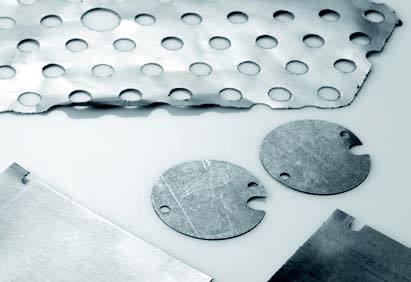

| Graphite Films are based on 100% pure graphite. The films are available as uncoated types and, for specific applications, with filled adhesive or standard adhesives. Due to their high thermal conductivity they are used in the CPU sectors for example. |  |
| Product features
 | Packaging Sheets:
 Custom dimensions on request. |
| Material | Thermal conductivity | Thermal resistance | Breakdown voltage | Thickness* | Hardness | |
|---|---|---|---|---|---|---|
| W/mK | K/W | kV | mm | Shore D | ||
| S 900 | Highly densed graphite film | 7.5 | 0.08 | No insulation | 0.15 - 0.29 | 25-35 |
| 90/10 | Graphite film | 5.5 | 0.09 | No insulation | 0.15, 2.0 | 25-35 |
(*) Parameters for bolded values.
