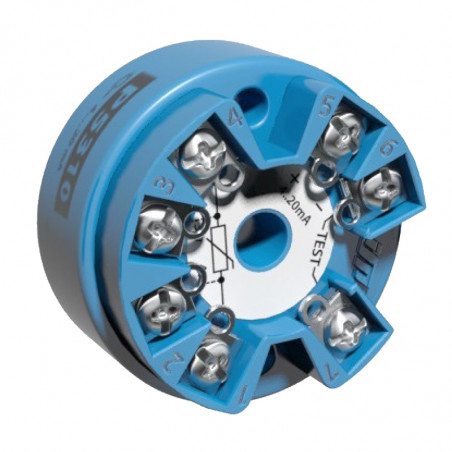

P5320 programmierbarer Sender mit HART-Kommunikation mit galvanischer Trennung
  • P5320 programmierbarer Sender mit HART-Kommunikation mit galvanischer Trennung

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: JSP Industrial Controls

P5320 programmierbarer Sender mit HART-Kommunikation mit galvanischer Trennung

Universal input with wire input measurement range (2,5...25000 Ohm, -200...2200 mV).

Accuracy up to 0,05%  High electric withstand of galvanic insulation (4kV). Universal input for one or two sensors. Function for signal proccess from two sensors(difference, average, record). Function THERMO-VOLTAGE SUPPRESSION for thermo voltage elimination. Function BREAK-PREVENTION for thermo cell breaking protection.

Technical data

Supply voltage 9 - 35 VDC
Operation ambient temperatures: -40 - 85C°C
Reference temperature 23 ± 5 °C
Protection level: execution H1x IP40,  clamps IP00,after installation in head - head protection level
  execution L1x IP40, clamps IP20
Humidity execution H1 x 0 -100% with condensation after installation in head
  execution L1 x 0 -95% relative humidity without condensation
Cable connection: screw clamps for section 0,5 - 1,5mm2, screw torque 0,5 Nm.
Heating time: 10s
Bus type DIN: TS 35 according to DIN 46277
Dimensions (H.xW.xL.) H1 44 x 23,5 mm L1 x 90 x 18 x 59 mm (see dimensions drawings)
Casing material: H1x polycarbonate
  L1x polycarbonate
Weight: H1x40gL1x80g
Operation position: arbitrary
