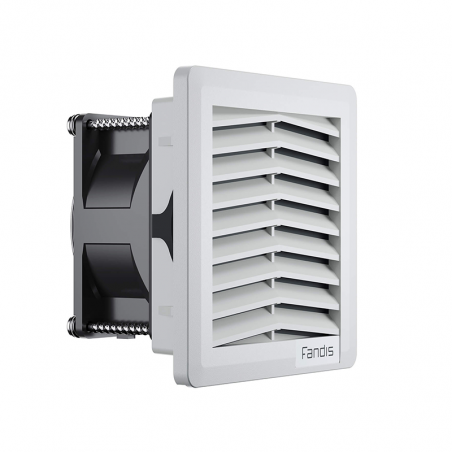

FF Series-Fans with filters with the degree of chronific IP54 or IP55 Indoor
FF Series-Fans with filters with the degree of chronific IP54 or IP55 Indoor

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FANDIS

FF Series-Fans with filters with the degree of chronific IP54 or IP55 Indoor

  • Free-tool clip mounting system
  • Plate thickness: FF08 from 1 to 2mm; FF12, FF13 from 1.3 to 3.2mm; FF15, FF20 from 1.3 to 3.7mm (up to 4mm with cut-out max tolerance)
  • Quick electrical connection by screwless terminal block
  • Standard color RAL 7035, other colors available on request, subject to quantity
  • Standard protection ratings: IP54 and Type 12. Optional versions: IP55, Type 1, 3R and EMC
  • Reverse airflow version (-R) see page 5
  • Frequency: 50/60 Hz
ModelDimensions HxWxDCut-OutRated VoltageRated power (50/60Hz)Max air flow (50/60Hz)Static Pressure (50/60Hz)Approvals
FF08A115UN 107x107x67 91.5X91.5 115 V a.c. 9.0/7.0 12/15 23/33 CE; cURus; cCSAus; cULus;
FF08A115UNR 107x107x67 91.5X91.5 115 V a.c. 9.0/7.5 16/21 45/64 CE; cURus; cCSAus; cULus;
FF08A230UF 107x107x67 91.5X91.5 230 V a.c. 14/11 10/13 16/25 CE;
FF08A230UN 107x107x67 91.5X91.5 230 V a.c. 10/8.0 12/15 23/33 CE; cURus; cCSAus; cULus;
FF08A230UNR 107x107x67 91.5X91.5 230 V a.c. 10/8.0 16/21 45/64 CE; cURus; cCSAus; cULus;
FF08D12UN 107x107x54 91.5X91.5 12 V d.c. 2.0 16 28 CE; cURus; cCSAus; cULus;
FF08D12UNR 107x107x54 91.5X91.5 12 V d.c. 2.2 23 44 CE; cURus; cCSAus; cULus;
FF08D24UN 107x107x54 91.5X91.5 24 V d.c. 2.0 16 28 CE; cURus; cCSAus; cULus;
FF08D24UNR 107x107x54 91.5X91.5 24 V d.c. 2.2 23 44 CE; cURus; cCSAus; cULus;
FF08D48UF 107x107x61 91.5X91.5 48 V d.c. 3.0 12 19 CE;
FF08GA115UF 107x107x80 92.5x92.5 115 V a.c. 12/10 21/26 40/55 CE; cURus; cCSAus; cULus;
FF08GA115UNR 107x107x64 92.5x92.5 115 V a.c. 12/9.0 16/20 40/60 CE; cURus; cCSAus; cULus;
FF08GA230UF 107x107x80 92.5x92.5 230 V a.c. 12/11 21/26 40/55 CE; cURus; cCSAus; cULus;
FF08GA230UNR 107x107x64 92.5x92.5 230 V a.c. 12/10 16/20 40/60 CE; cURus; cCSAus; cULus;
FF08GD24UN 107x107x77 92.5x92.5 24 V d.c. 15 50 160 CE; cURus; cCSAus; cULus;
FF08GD24UNR 107x107x77 92.5x92.5 24 V d.c. 17 60 200 CE; cURus; cCSAus; cULus;
FF08GD48UF 107x107x77 92.5x92.5 48 V d.c. 17 48 144 CE;
FF12A115UF 150x150x73 124X124 115 V a.c. 16/15 45/50 55/62 CE; cURus; cCSAus; cULus;
FF12A115UFR 150x150x73 124X124 115 V a.c. 16/15 47/52 72/82 CE; cURus; cCSAus; cULus;
FF12A115UN 150x150x73 124X124 115 V a.c. 19/17 67/79 73/86 CE; cURus; cCSAus; cULus;
FF12A115UNR 150x150x73 124X124 115 V a.c. 19/17 60/70 86/115 CE; cURus; cCSAus; cULus;
FF12A230UF 150x150x73 124X124 230 V a.c. 18/17 45/50 55/62 CE; cURus; cCSAus; cULus;
FF12A230UFR 150x150x73 124X124 230 V a.c. 18/17 47/52 72/82 CE; cURus; cCSAus; cULus;
FF12A230UN 150x150x73 124X124 230 V a.c. 18/16 67/79 73/86 CE; cURus; cCSAus; cULus;
FF12A230UNR 150x150x73 124X124 230 V a.c. 18/16 60/70 86/115 CE; cURus; cCSAus; cULus;
FF12A24UF 150x150x73 124X124 24 V a.c. 15/15 39/44 43/41 CE;
FF12A24UFR 150x150x73 124X124 24 V a.c. 15/15 50/52 59/40 CE;
FF12D24UN 150x150x73 124X124 24 V d.c. 7.4 47 56 CE; UR; cCSAus; cULus;
FF12D24UN4 150x150x73 124X124 24 V d.c. 23 107 164 CE;
FF12D24UNR 150x150x73 124X124 24 V d.c. 7.4 64 79 CE; UR; cCSAus; cULus;
FF12D48UN 150x150x73 124X124 48 V d.c. 8.6 47 56 CE; UR; cCSAus; cULus;
FF12D48UNR 150x150x73 124X124 48 V d.c. 8.6 64 79 CE; UR; cCSAus; cULus;
FF13PA115UF 204x204x96 177X177 115 V a.c. 19/18 100/110 55/60 CE; cURus; cCSAus; cULus;
FF13PA115UFR 204x204x96 177X177 115 V a.c. 18/18 100/110 70/80 CE; cURus; cCSAus; cULus;
FF13PA115UN 204x204x96 177X177 115 V a.c. 16/15 110/130 80/100 CE; cURus; cCSAus; cULus;
FF13PA115UNR 204x204x96 177X177 115 V a.c. 20/18 110/135 100/120 CE; cURus; cCSAus; cULus;
FF13PA230UF 204x204x96 177X177 230 V a.c. 18/18 100/110 55/60 CE; cURus; cCSAus; cULus;
FF13PA230UFR 204x204x96 177X177 230 V a.c. 18/18 100/110 70/80 CE; cURus; cCSAus; cULus;
FF13PA230UN 204x204x96 177X177 230 V a.c. 19/17 110/130 80/100 CE; cURus; cCSAus; cULus;
FF13PA230UNR 204x204x96 177X177 230 V a.c. 19/18 110/135 100/120 CE; cURus; cCSAus; cULus;
FF13PD24UN 204x204x96 177X177 24 V d.c. 8.2 100 60 CE; UR; cCSAus; cULus;
FF13PD24UNR 204x204x96 177X177 24 V d.c. 8.5 113 83 CE; UR; cCSAus; cULus;
FF15A115UF 250x250x124 223X223 115 V a.c. 31/31 230/270 115/155 CE; cURus; cCSAus; cULus;
FF15A115UFR 250x250x124 223X223 115 V a.c. 31/31 245/290 165/210 CE; cURus; cCSAus; cULus;
FF15A115UN2 250x250x112 223X223 115 V a.c. 39/41 230/270 150/195 CE; cURus; cCSAus; cULus;
FF15A115UNR2 250x250x112 223X223 115 V a.c. 39/41 238/283 195/252 CE; cURus; cCSAus; cULus;
FF15A230UF 250x250x124 223X223 230 V a.c. 32/36 230/270 115/155 CE; cURus; cCSAus; cULus;
FF15A230UFR 250x250x124 223X223 230 V a.c. 32/36 245/290 165/210 CE; cURus; cCSAus; cULus;
FF15A230UN2 250x250x112 223X223 230 V a.c. 42/45 230/272 150/195 CE; cURus; cCSAus; cULus;
FF15A230UNR2 250x250x112 223X223 230 V a.c. 42/45 238/283 195/252 CE; cURus; cCSAus; cULus;
FF15D24UF 250x250x125 223X223 24 V d.c. 31 275 150 CE; cURus; cCSAus; cULus;
FF15D24UFR 250x250x125 223X223 24 V d.c. 31 295 205 CE; cURus; cCSAus; cULus;
FF15D24UN 250x250x125 223X223 24 V d.c. 17 245 100 CE; UR; cCSAus; cULus;
FF15D24UNR 250x250x125 223X223 24 V d.c. 17 285 148 CE; UR; cCSAus; cULus;
FF15D48UF 250x250x125 223X223 48 V d.c. 43 295 175 CE;
FF15D48UFR 250x250x125 223X223 48 V d.c. 43 310 250 CE;
FF15MA115UF 250x250x111 223X223 115 V a.c. 16/15 130/145 63/39 CE;
FF15MA115UFR 250x250x111 223X223 115 V a.c. 16/15 140/155 80/55 CE;
FF15MA230UF 250x250x111 223X223 230 V a.c. 21/20 130/145 63/39 CE;
FF15MA230UFR 250x250x111 223X223 230 V a.c. 21/20 140/155 80/55 CE;
FF15PA115UF 250x250x112 223X223 115 V a.c. 17/16 105/120 54/57 CE; cURus; cCSAus; cULus;
FF15PA115UFR 250x250x112 223X223 115 V a.c. 17/16 110/120 66/70 CE; cURus; cCSAus; cULus;
FF15PA115UN 250x250x112 223X223 115 V a.c. 20/19 125/145 80/100 CE; cURus; cCSAus; cULus;
FF15PA115UNR 250x250x112 223X223 115 V a.c. 20/19 130/150 100/120 CE; cURus; cCSAus; cULus;
FF15PA230UF 250x250x112 223X223 230 V a.c. 18/17 105/120 54/57 CE; cURus; cCSAus; cULus;
FF15PA230UFR 250x250x112 223X223 230 V a.c. 18/17 110/120 66/70 CE; cURus; cCSAus; cULus;
FF15PA230UN 250x250x112 223X223 230 V a.c. 19/17 125/145 80/100 CE; cURus; cCSAus; cULus;
FF15PA230UNR 250x250x112 223X223 230 V a.c. 19/18 130/150 100/120 CE; cURus; cCSAus; cULus;
FF15PD24UN 250x250x112 223X223 24 V d.c. 7.6 140 62 CE; UR; cCSAus; cULus;
FF15PD24UNR 250x250x112 223X223 24 V d.c. 7.6 150 84 CE; UR; cCSAus; cULus;
FF15PD48UN 250x250x112 223X223 48 V d.c. 8.6 140 62 CE; UR; cCSAus; cULus;
FF15PD48UNR 250x250x112 223X223 48 V d.c. 8.6 150 84 CE; UR; cCSAus; cULus;
FF20A115UE 325x325x160 291X291 115 V a.c. 77/92 445/490 131/141 CE;
FF20A115UE1 325x325x160 291X291 115 V a.c. 74/83 445/485 129/140 CE; cURus; cCSAus; cULus;
FF20A115UER 325x325x160 291X291 115 V a.c. 77/92 530/577 206/216 CE;
FF20A115UER1 325x325x160 291X291 115 V a.c. 74/83 530/575 195/207 CE; cURus; cCSAus; cULus;
FF20A230UE 325x325x160 291X291 230 V a.c. 79/96 460/510 136/148 CE;
FF20A230UE1 325x325x160 291X291 230 V a.c. 70/85 455/503 134/146 CE; cURus; cCSAus; cULus;
FF20A230UER 325x325x160 291X291 230 V a.c. 79/96 540/595 204/219 CE;
FF20A230UER1 325x325x160 291X291 230 V a.c. 70/85 540/590 207/221 CE; cURus; cCSAus; cULus;
FF20A400TUE 325x325x160 291X291 400 V 3 ~ 99/124 537/632 186/236 CE;
FF20GA115UE 325x325x159 291X291 115 V a.c. 143/177 708/775 188/181 CE;
FF20GA115UE1 325x325x159 291X291 115 V a.c. 110/156 675/738 183/170 CE; cURus; cCSAus; cULus;
FF20GA115UEA 325x325x159 291X291 115 V a.c. 146/179 875/960 200/189 CE;
FF20GA115UEA1 325x325x159 291X291 115 V a.c. 110/156 893/960 200/176 CE; cURus; cCSAus; cULus;
FF20GA115UER 325x325x159 291X291 115 V a.c. 124/192 760/845 282/258 CE;
FF20GA115UER1 325x325x159 291X291 115 V a.c. 102/145 760/850 280/254 CE; cURus; cCSAus; cULus;
FF20GA115UERA 325x325x159 291X291 115 V a.c. 124/124 820/920 279/255 CE;
FF20GA115UERA1 325x325x159 291X291 115 V a.c. 102/145 820/925 279/251 CE; cURus; cCSAus; cULus;
FF20GA230UE 325x325x159 291X291 230 V a.c. 155/194 705/790 200/206 CE;
FF20GA230UE1 325x325x159 291X291 230 V a.c. 120/158 680/765 200/210 CE; cURus; cCSAus; cULus;
FF20GA230UEA 325x325x159 291X291 230 V a.c. 158/198 850/960 213/216 CE;
FF20GA230UEA1 325x325x159 291X291 230 V a.c. 120/158 895/998 220/222 CE; cURus; cCSAus; cULus;
FF20GA230UER 325x325x159 291X291 230 V a.c. 170/208 773/870 306/291 CE;
FF20GA230UER1 325x325x159 291X291 230 V a.c. 120/157 760/860 308/304 CE; cURus; cCSAus; cULus;
FF20GA230UERA 325x325x159 291X291 230 V a.c. 171/210 840/958 302/289 CE;
FF20GA230UERA1 325x325x159 291X291 230 V a.c. 120/157 825/930 305/295 CE; cURus; cCSAus; cULus;
FF20GEA400TUE 325x325x149 291X291 400 V 3 ~ 137 485 180 CE;
FF20GEA400TUER 325x325x149 291X291 400 V 3 ~ 137/173 645/695 240/255 CE;
FF20PA115UF 325x325x164 291X291 115 V a.c. 45/45 310/350 107/111 CE; cURus; cULus;
FF20PA115UFR 325x325x164 291X291 115 V a.c. 45/45 339/374 141/135 CE; cURus; cULus;
FF20PA230UF 325x325x164 291X291 230 V a.c. 45/45 315/345 106/108 CE; cURus; cULus;
FF20PA230UFR 325x325x164 291X291 230 V a.c. 45/45 334/367 135/125 CE; cURus; cULus;
