Manufacturer: STEGO

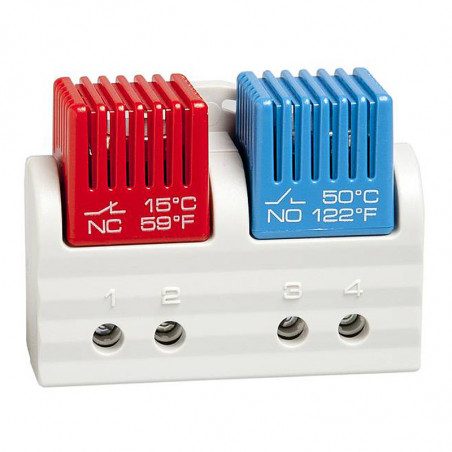

Double thermostat FTD011

Properties
NO and NC thermostat in one device
Default temperature set
High switching over accuracy
Two thermostats in one devices
Heating and cooling elements can be switched over independently



Technical data:
Sensor type
Bimetal
Contact type
 Fast
contact resistance
 < 20mOhm
Life time
 >100 000 cycles
Max contact current
 AC240V5(1,6)A (resistant load)
DC30W
Test current AC10A
EMC
  EN 55014-1 -2, EN61000-3-2, EN 61000-3-3
Terminals
 4 pole 2,5mm2
Mounting
 For DIN 35mm bus, EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
 47 x 33 x 33 mm
Weight
 ok.40g
Assembly
 arbitrary
Operation temperature
 -20 do +80°C
IP
 IP20
Certificates
 VDE i UL

Catalogue number
Article number  (NC)  (NO)
Turn off temperature Turn on temperature Turn off temperature Turn on temperature
01163.0-00 +15 °C (tolerance+-5 K) +5 °C (tolerance +- 5 K) +50 °C (tolerance +- 6 K) +40 °C (tolerance +- 7 K)
01163.0-01 +25 °C (tolerance +- 5 K) +15 °C (tolerance +-5 K) +60 °C (tolerance +- 6 K) +50 °C (tolerance +- 7 K)
01164.0-02 +15 °C (tolerance +- 5 K) +5 °C (tolerance+-5 K) +35 °C (tolerance +- 6 K) +25 °C (tolerance +- 7 K)
01163.0-03 +25 °C (tolerance +- 5 K) +15 °C (tolerance +- 5 K) +50 °C (tolerance +- 6 K) +40 °C (tolerance +- 7 K)
  Cooling (NO) Cooling (NO)
01164 0 00 +50 °C (tolerance +- 6 K) +40 °C (tolerance +- 7 K) +60 °C (tolerance +- 6 K) +50 °C (tolerance +- 7 K)
