Manufacturer: STEGO

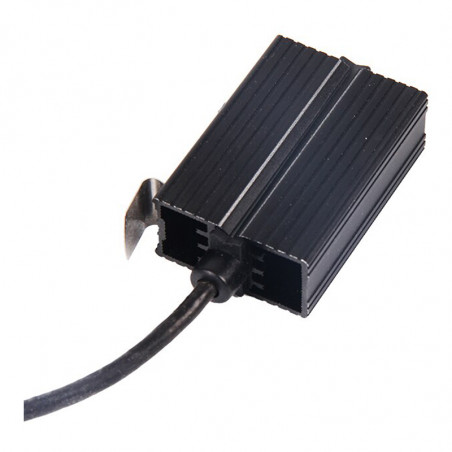

Heater HGK 047 - 10W, 20W, 30W series

- Temperature limiter and self control (PTC).
- Wide range of power supply
- Dynamic heating without electromagnetic noise.
- Energy-saving and easy to maintain.
- Small dimensions, compact.



Technical data
• Heating element: Thermistor (PTC) - self controlled with temperature limiter.
• Heating body Anodized aluminium profile.
• Mounting Mounting clamp for DIN bus 35 mm, EN 50022
• Assemble: Vertical
• Operation temperature - 45°C - +70°C
• IP IP 54 /II
• Equipment 2 screws number. 09024.0-00

Ogrzewacz Seria HGK 047:10W, 20W, 30W aprobacje

Dimensions
Heater HGK 047:10W, 20W, 30W series Heater HGK 047:10W, 20W, 30W series

Article number Nominal voltage Heating power   Max turn on current Length
(L)		 Weight Terminals Aprobacje

04700.0-00

 AC/DC 110-250 V2) 10W 1,0A 50 mm 0,10 kg Silicone cable 3x0,5 mm² x 300 mm VDE EAC

04701.0-00

 AC/DC 110-250 V2) 20 W 2,5 A 60 mm 0,20 kg Silicone cable 3x0,5 m²m x 300 mm VDE EAC

04702.0-00

 AC/DC 110-250 V2) 30 W 3,0 A 70 mm 0,20 kg Silicone cable 3x0,5 mm² x 300 mm VDE EAC

04700.9-00

 AC/DC 110-120 V 10W 1,0A 50 mm 0,10 kg Silicone cable 3x0,5 mm² x 300 mm ULFileNo. E150057 EAC

04701.9-00

 AC/DC 110-120 V 20 W 1,5A 70 mm 0,20 kg Silicone cable 3x0,5 mm² x 300 mm ULFileNo. E150057 EAC

04702.9-00

 AC/DC 110-120 V 30 W 1,5A 100 mm 0,20 kg Silicone cable 3x0,5 mm² x 300 mm ULFileNo. E150057 EAC
