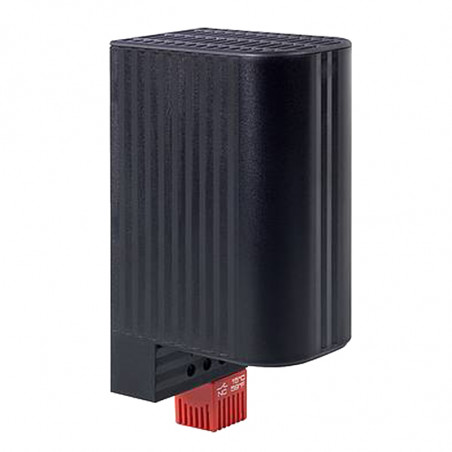

Heater with thermostat - CSF 060 - 50W to 150W
Heater with thermostat - CSF 060 - 50W to 150W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

Heater with thermostat - CSF 060 - 50W to 150W

- Closed - protected from touch
- With temperature limiter and self PTC control.
- Integrated thermostat
- For Th-35 bus assembly
- Double insulation
- Small dimensions


Technical data

Operating voltage  AC/DC 120 – 240 V¹ (min. 110 V, max. 265 V)
Heating element  PTC resistor – temperature limiting
Surface temperature  < +80 °C (+176 °F), except upper protective grille
Connection  4-pole terminal 2.5 mm², torque 0.8 Nm max.
Casing  plastic according to UL94 V-0, black
Mounting  clip for 35 mm DIN rail, EN 60715
Fitting position  vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP20 / II (double insulated)
Approvals  VDE, UL File No. E150057, EAC
Note  other voltages on request

Heater with thermostat - CSF 060 - 50W to 150W



Heating power / Ambient temperature CSF 060
Heater with thermostat - CSF 060 - 50W to 150W

Article number Heating power Max turn on current Air temperature Turn off temperature Turn on temperature Dimensions Weight

06001.0-00

 50 W 2.5A +86 °C + 15°C +5°C 110x60x90 mm 0,3 kg

06002.0-00

 50 W 2.5A +86 °C +25 °C + 15°C 110x60x90 mm 0,3 kg

06011.0-00

 100W 4,5 A + 120 °C + 15°C +5°C 110x60x90 mm 0,3 kg

06012.0-00

 100 W 4,5 A + 120 °C +25 °C +15 °C 110x60x90 mm 0,3 kg

06021.0-00

 150W 8A + 145 °C + 15°C +5°C 150x60x90 mm 0,5 kg

06022.0-00

 150W 8A + 145 °C +25 °C +15 °C 150x60x90 mm 0,5 kg


Heater CSF 060

Example of connection
