Manufacturer: Eaton / CEAG

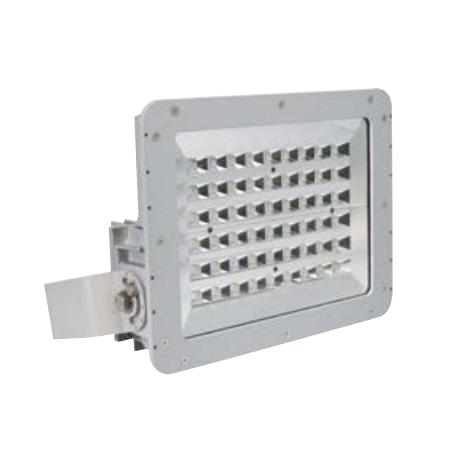

FMV 13L CY/UNV1 76 M20 1 2564 384

  • 12,564,384
  • Theard 2 x M20, metal thread
  • Weight 14.5 kg
  • 1 x M20
  • LAMP LED System 112 W
  • STRUMIENSWIE 13100 lm

FMV LED / NFMV / NSSFMV Series Ex Floodlights

(Zones 2, 21, 22)

Efficient FMV/nFMV...LED LED Floodlights

The new series of energy-saving **FMV** LED floodlights is ideal for general lighting in potentially explosive areas, such as Zone 2 (explosive gases) and Zones 21 and 22 (explosive dust). These floodlights, with a luminous flux ranging from 3189 lm to 15181 lm, can replace conventional light sources ranging from 50 W to 1000 W. The new **NFMV 25L and 50L** models can even replace luminaires with a luminous flux of >1000 W and conventional discharge lamps. High-efficiency LED modules with an efficiency of over 112 lm/W enable energy savings of up to 70% compared to luminaires with discharge lamps.

LED Technology for Harsh Environments

Thanks to the exceptionally robust housing design and the vibration-resistant LED modules, the FMV floodlight is resistant to impact, shock, and vibration. This makes it an ideal solution for illuminating spaces with challenging environmental conditions. Thanks to the use of non-temperature-sensitive LED technology, even extreme temperatures from -40°C to +55°C are no problem. The robust, powder-coated metal housing and impact-resistant glass meet the highest requirements for mechanical protection and corrosion resistance (IP66 protection rating). The advantages of modern LED technology include high luminous flux, very low energy consumption, long service life, and high efficiency.

NFMV Floodlights with High-Pressure Discharge Lamps

NFMV floodlights with internal reflectors made of high-gloss aluminum (for high-pressure discharge lamps from 150 W to 400 W) are designed for use in explosion-hazardous areas: Zones 2 and 21. The ambient temperature range is from -25°C to +50/+45°C. The epoxy resin housing and powder-coated glass, along with temperature- and impact-resistant glass, provide an IP66 rating. The modular design enables quick and economical installation. Durable sealing ensures safety even in extreme conditions. The limited breathing design allows for high luminous flux while achieving the favorable T3 temperature class.

NSSFMV Steel Floodlights for Extremely Harsh Conditions

**NSSFMV** floodlights with high-gloss aluminum reflectors (for high-pressure lamps from **150 W to 400 W**) meet the requirements for Zones 2 and 22. Ambient temperature range: **-25 °C to +55 / +50 °C**. They are particularly recommended for harsh environments requiring high mechanical strength and resistance to temperature changes. The stainless steel housing with impact- and heat-resistant tempered glass meets **IP66** standards. Thanks to their modular design and quick assembly, these luminaires are ideal for installation in challenging environments.

Wide Application Options

Thanks to their exceptionally robust design, high degree of protection, and wide operating temperature range, FMV/NFMV/NSSFMV floodlights are suitable for applications in the petrochemical industry, chemical plants, wastewater treatment plants, oil platforms, LNG terminals, food processing plants, flour mills, sugar refineries, and indoor and outdoor installations. FMV/NFMV/NSSFMV luminaires are equipped with an adjustable mounting bracket, allowing for wall, ceiling, or cable mounting. Mounting accessories are available upon request.

Product Features:

  • FMV LED Floodlights with High-Efficiency LED Modules
  • NFMV and NSSFMV luminaires for high-pressure discharge lamps with power ranging from 150 W to 400 W
  • Wide operating temperature range depending on type: from -45 °C to +55 °C
  • High IP66 protection rating – ideal for harsh environmental conditions

FMV LED nFMV LED 25L/50L
Type Examination Certificate (Gas) DEMKO 15 ATEX 1383X DEMKO 15 ATEX 1225X
Type Examination Certificate (Dust) DEMKO 15 ATEX 1377X DEMKO 15 ATEX 1226X
IECEx Certificate of Conformity IECEx UL 15.0029 IECEx UL 15.0040
Marking according to 2014/34/EU II 3 G Ex nA IIC T5/T4 Gc II 2 D Ex tb IIIC T85 °C/T80 °C Db II 3 G Ex nA IIC T4 Gc II 2 D Ex tb IIIC T85 °C Db IP66
Marking according to IECEx Ex nA IIC T5/T4 Gc Ex tb IIIC T85 °C/T80 °C Db Ex nA IIC T4 Gc Ex tb IIIC T85 °C Db IP66
Permissible ambient temperature -40 °C to +55 °C -30 °C to +50 °C (FMV 25L)
-30 °C to +45 °C (FMV 50L)
Light source lifespan 60,000 h, ta = +55 °C / 100,000 h, ta = +25 °C 50,000 h, ta = +55 °C / 100,000 h, ta = +25 °C
Power supply voltage 100 – 277 V AC / 180 – 250 V DC
Frequency 50 – 60 Hz
Power factor φ ≥ 0.9
Power supply electronic
Protection class I
Lamp / light source LED system 28 – 131 W LED system 263 W (FMV 25L) / 531 W (FMV 50L)
Light color / CRI 5000 K / Ra 70, 3000 K / Ra 80 (on request) 5000 K / Ra 70
Dimensions (L × W × H) 394 × 178 × 305 mm 533 × 204 × 406 mm
533 × 204 × 825 mm (FMV 50L)
Connection terminals L, N, and PE; 2 × 4 mm²
Housing Color Gray
Housing Material Lightweight Aluminum Alloy with Paint Coating
Weight 1.45 kg 23.6 kg (FMV 25L) / 48.1 kg (FMV 50L)
Cable Entries / Blanking Plates / Drilling Metal Thread 2 × M20 × 1.5, 1 × M20 Blanked or Metal Thread 2 × M25 × 1.5, 1 × M25 capped Metal thread 2 × M25 × 1.5, 1 × M25 capped
Mounting method Mounting bracket
Protection rating according to EN 60529 IP66
Protective cover Borosilicate glass

Additional FMV LED data:

Type Power Rated luminous flux (± 10%) Temperature class II 3 G – TU ≤ 40 °C Temperature class II 3 G – TU ≤ 55 °C
FMV 3L LED 28 W 3189 lm T5 T4
FMV 5L LED 45 W 5183 lm T5 T4
FMV 7L LED 62 W 7095 lm T5 T4
FMV 9L LED 79 W 9132 lm T5 T4
FMV 11L LED 99 W 11107 lm T4 T4
FMV 13L LED 112 W 13100 lm T4 T4
FMV 15L LED 131 W 15181 lm T4 T4
nFMV 25L LED 263 W 26240 lm T4 T4
nFMV 50L LED 531 W 53890 lm T4 T3

Technical data: NFMV NSSFMV
Type examination certificate (gas) DEMKO 10 ATEX 0907694 LCIE 11 ATEX 1014 X (Gas)
Type Examination Certificate (Dust) DEMKO 10 ATEX 147285 LCIE 11 ATEX 3101 X (Dust)
IECEx Certificate – IECEx CQM 12.0004X
Marking according to 2014/34/EU II 3 G Ex nR IIC T3 II 2 D Ex tb A21 IP66 T² II 3 G Ex nR IIC T3/T2 II 2 D Ex tb IIIC T² Db
IECEx marking – Ex nR IIC T3/T2 Gc Ex tb IIIC T125°C/T205°C IP66
Permissible ambient temperature -25 °C to +55 °C (≤ 400 W)
-25 °C to +50 °C (400 W)		 -45 °C to +55 °C (≤ 250 W)
-45 °C to +50 °C (400 W)
Rated voltage 230 V ¹
Frequency 50 Hz ¹
Power factor cos φ ≥ 0.9
Protection class I
Light source / lamp HSE/HIE lamp 150 – 400 W
Lamp base E40 according to IEC 60238
Rated luminous flux ¹
Luminous efficiency 60% 68%
Dimensions (L × W × H) 600 × 458 × 173 mm 592 × 535 × 193 mm
Connection terminals L, N, PE; 2 × 4 mm² L, N, PE; 2 × 2.5 mm²
Housing Color Gray Natural
Housing Material Aluminum Alloy with Paint Coating Stainless Steel
Weight 15.5 kg 16.9 kg
Cable Entries / Plates / Drillings 2 × M20 × 1.5 Threaded, 1 × M20 Plugged
Mounting method Mounting bracket
Protection class according to EN 60529 IP66
Protective cover / lens Borosilicate glass

Additional data for NFMV and NSSFMV luminaires:

Type Power Rated flux light (3) Temperature class II 3 G Max. surface temperature II 2 D
TU ≤ 40 °C TU ≤ 50 °C TU ≤ 55 °C TU ≤ 40 °C TU ≤ 50 °C TU ≤ 55 °C
NFMV... HSE 150 W 14000 lm T5 T3 -- T100 °C T200 °C --
HSE 250 W 25000 lm T5 T3 -- T100 °C T200 °C --
HIE 250 W 19000 lm T3 T3 -- T200 °C T200 °C --
HSE / HIE 400 W 48000 lm / 33000 lm T3 T3 -- T200 °C T200 °C --
NSSFMV... HSE 150 W 14000 lm T4 T3 T3 T125 °C T135 °C T140 °C
HSE / HIE 250 W 25000 lm / 19000 lm T3 T3 T3 T160 °C T170 °C T175 °C
HSE / HIE 400 W 48000 lm / 33000 lm T3 T2 -- T195 °C T205 °C --
