Manufacturer: Ebmpapst

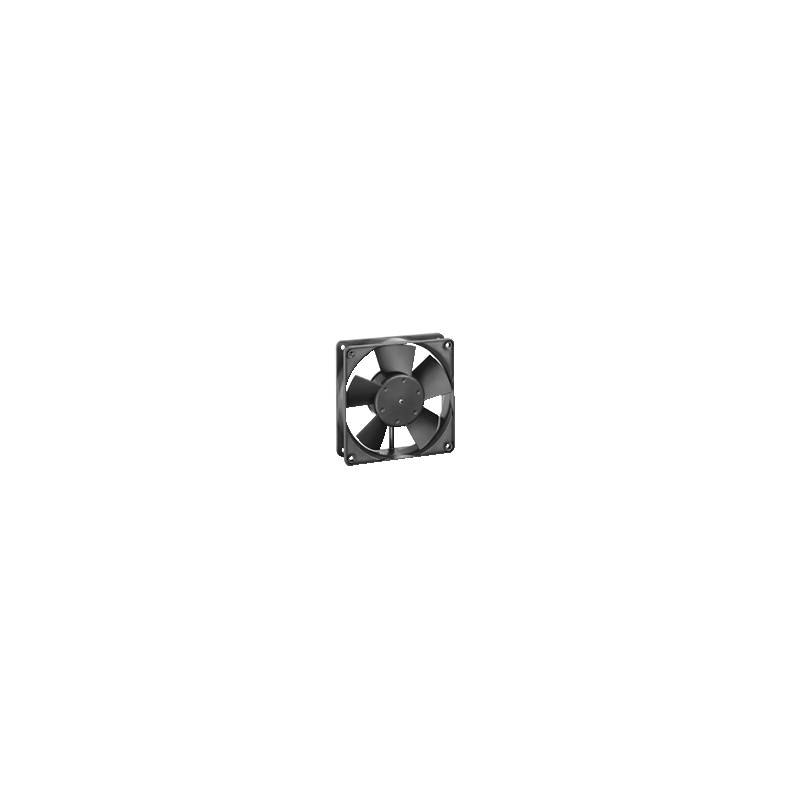

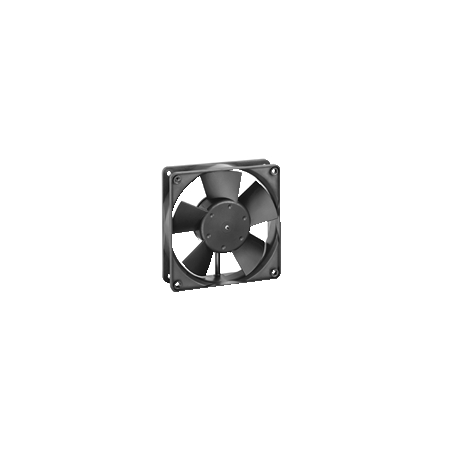

4312-179 DC axial fan 12V 9.4W

  • 4312179
  • Air flow direction Exhaust through struts
  • Dimensions 119 x 119 x 32 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 9,4
  • Nominal voltage 12
  • Speed 3400
  • Min. ambient temperature -20
  • Max. ambient temperature 65
  • Air flow 204
  • Fan type DC axial compact
  • Voltage range 6 ... 13,2
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Reverse polarity and locked rotor protection.
  • Weight 0,22 kg
