Manufacturer: Ebmpapst

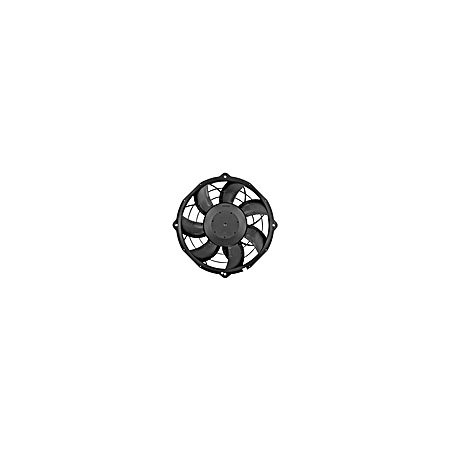

W3G350-CT81-P1 EC axial fan 110V 150W

  • W3G350CT81P1
  • Air flow direction A
  • Protection rating customer-specific
  • Frequency DC
  • Input power 150
  • Nominal voltage 110
  • Speed 1400
  • Current draw 1,4
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 350 mm
  • Fan type EC axial with wall ring
  • Voltage range 77 ... 138
  • Rotor material Pressed semi-finished product made of steel sheet, sprayed with PP plastic
  • Type of voltage DC
  • Motor protection Electronic engine protection
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing
  • Maximum back pressure 90
  • Rotor surface Galvanized
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material Steel sheet, galvanized and coated with black plastic (RAL 9005)
  • Weight 4,62 kg
  • Compliance with standards EN 45545-2, HL3 outdoor; EN 50155; EN 61373, Cat. 1B
