Manufacturer: Ebmpapst

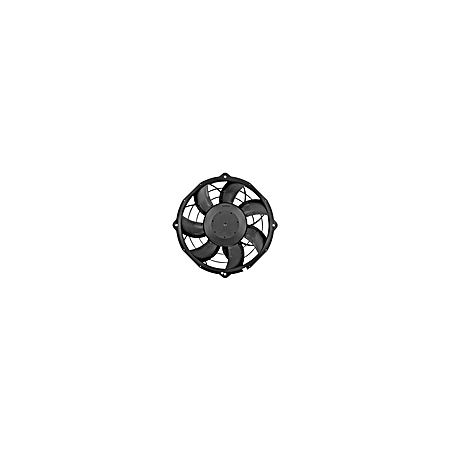

W4D500-CM01-80 AC axial fan 230V 530W

  • W4D500CM0180
  • Air flow direction A
  • Connection D
  • Protection rating IP54
  • Frequency 50
  • Input power 530
  • Phase 3~
  • Nominal voltage 230
  • Speed 1400
  • Current draw 2
  • Certificate CSA C22.2 No. 100 / EAC / UL 1004-1 / VDE
  • Size 500 mm
  • Fan type AC axial with wall ring
  • Rotor material Pressed, painted steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 110
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2+T
  • Motor bearing Ball bearing
  • Maximum back pressure 140
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Fan housing material Steel sheet, galvanized and coated with white aluminum plastic (RAL 9006)
  • Weight 13,8 kg
  • Compliance with standards EN 61800-5-1 / CE
