Manufacturer: FANDIS

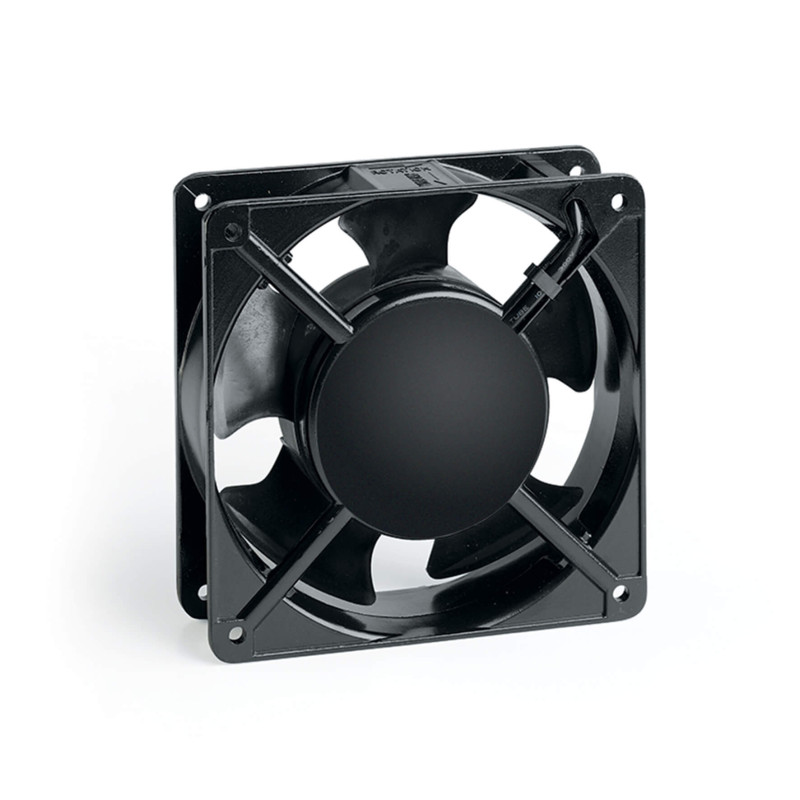

A12A12HTSF00 AC Axial Fan 115V 11W

  • A12A12HTSF00
  • Air flow direction Exhaust through brackets
  • Dimensions 120 x 120 x 25 mm
  • Rated voltage 115
  • Housing material Odlew aluminium
  • Protection rating IP44
  • Frequency 50
  • Input power 14
  • Speed 2350
  • Current draw 0,15
  • Air flow 93
  • Certificate CE; cURus; UKCA
  • Mounting method screws
  • Static Pressure 40
  • Noise Level 38
  • Fan type AC axial
  • Voltage range 103-126
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class B
  • Motor bearing Plain bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷80 °C
  • Working temperature -40÷70 °C
