Manufacturer: FANDIS

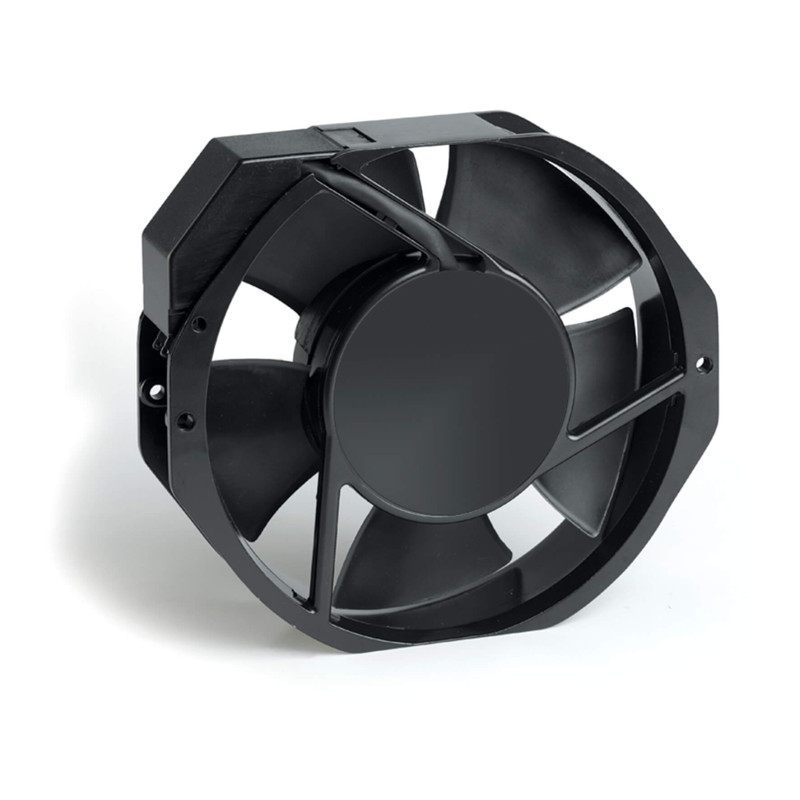

C17C23HTBF00 AC axial fan 230V 29W

  • C17C23HTBF00
  • Air flow direction Exhaust through brackets
  • Dimensions 172 x 150 x 51 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP44
  • Frequency 50
  • Input power 29
  • Speed 2850
  • Current draw 0,12
  • Air flow 348
  • Certificate CE; cURus; UKCA
  • Mounting method screws
  • Static Pressure 157
  • Noise Level 53
  • Fan type AC axial
  • Voltage range 207-253
  • Type of voltage AC
  • Motor protection Thermal protection
  • Insulation class B
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷80 °C
  • Working temperature -40÷70 °C
