Manufacturer: FANDIS

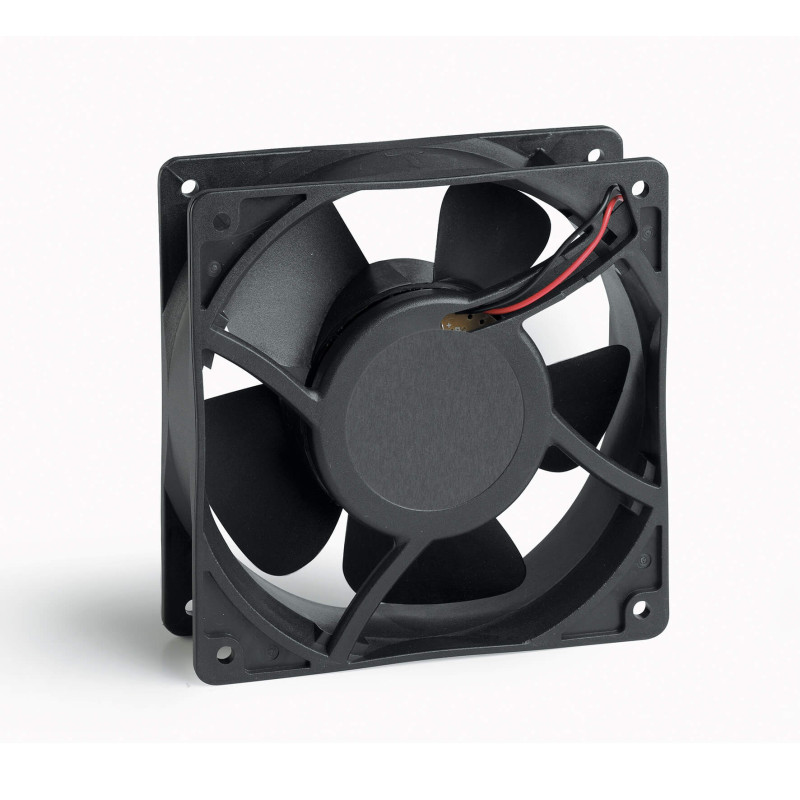

D12B05HWSZ00 DC axial fan 24V 7.68W

  • D12B05HWSZ00
  • Air flow direction Inlet through brackets
  • Dimensions 120 x 120 x 38 mm
  • Rated voltage 24
  • Housing material Plastik UL94-V0
  • Protection rating IP20
  • Input power 7,68
  • Speed 2800
  • Current draw 0,32
  • Air flow 179
  • Certificate CE; cURus; UKCA
  • Mounting method screws
  • Static Pressure 66
  • Noise Level 46.7
  • Voltage Input Min (V) 17
  • Fan type DC axial
  • Voltage range 21,6-26,4
  • Type of voltage DC
  • Motor protection Electronically secured
  • Insulation class A
  • Motor bearing Plain bearing
  • Electrical hookup Wires
  • Storage temperature -40÷70 °C
  • Working temperature -10÷70 °C
