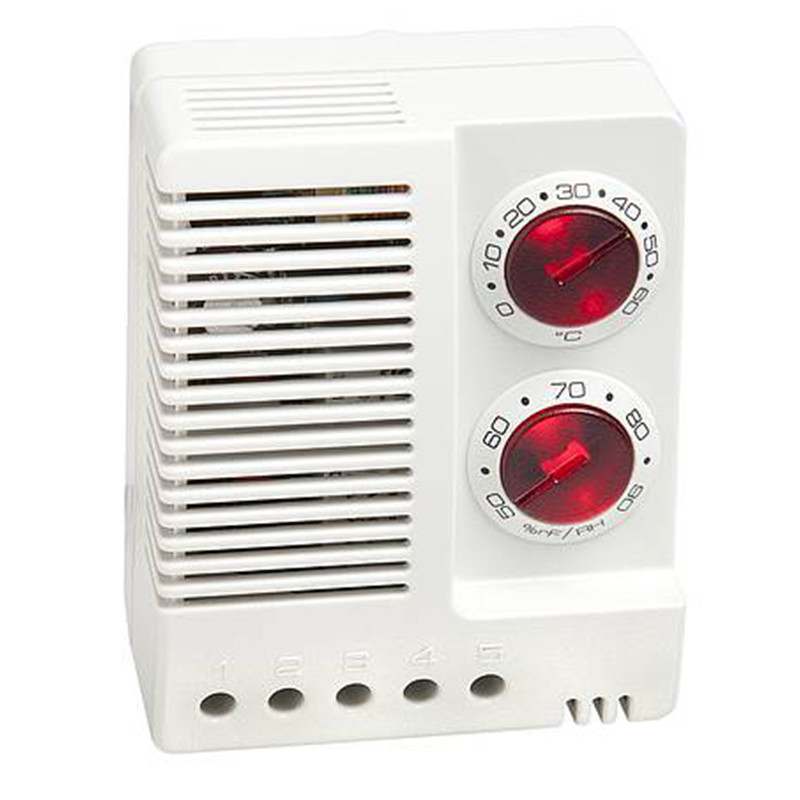

Electronic hygrotherm ETF 012
  • Electronic hygrotherm ETF 012

Photos are for informational purposes only. View product specification

Electronic hygrotherm ETF 012

ctronic hygrotherm ETF 012






Temperature and air humidity set up
Optic operation indicator (LED)
High contact current
For DIN bus

Technical data
Switch over difference (temperature)
2K(±1 K tolerance)
Switch over difference (humidity)
4 % humidity (± 1 % tolerance)
Reaction time (humidity)
ok. 160 Sec.
Contact type
Switch over contact
Contact resistance
< 10 mOhm
Lifetime (NC): 50 000 cycles (NO): 100 000 cycles
Max switch over current
NC: AC 250 V 6(1) A
NO: AC 250 V 8(1,6) A
NC: AC 120 V 6(1) A
NO: AC 120 V8 (1,6) A DC24V4A
EMC
EN 55014-1 -2, EN 61000-3-2, EN 61000-3-3
Operation indicator
LED
Terminals 5 pole 2,5 mm2
Mounting
For DIN 35 mm bus, EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
77 x 60 x 43 mm
Weight
ok. 20 g
Assembly
Vertical
Operation temperature
0 do 60 °C (32 do 140 °F) /-20 do 80 °C (-4 do 176 T)
IP IP20





Catalogue number
Article numberPower supplyTemperature rangeHumidity rangeCertificates
01230.0-00 AC 230 V, 50/60 Hz 0 do 60 °C 50 do 90 % VDE, UL File No. E164102
01230.9-00 AC 120 V, 50/60 Hz 32 do 140 °F 50 do 90 % UL File No. E164102
01230.9-01 AC 120 V, 50/60 Hz 0 do 60 °C 50 do 90 % UL File No. E164102
