Manufacturer: STEGO

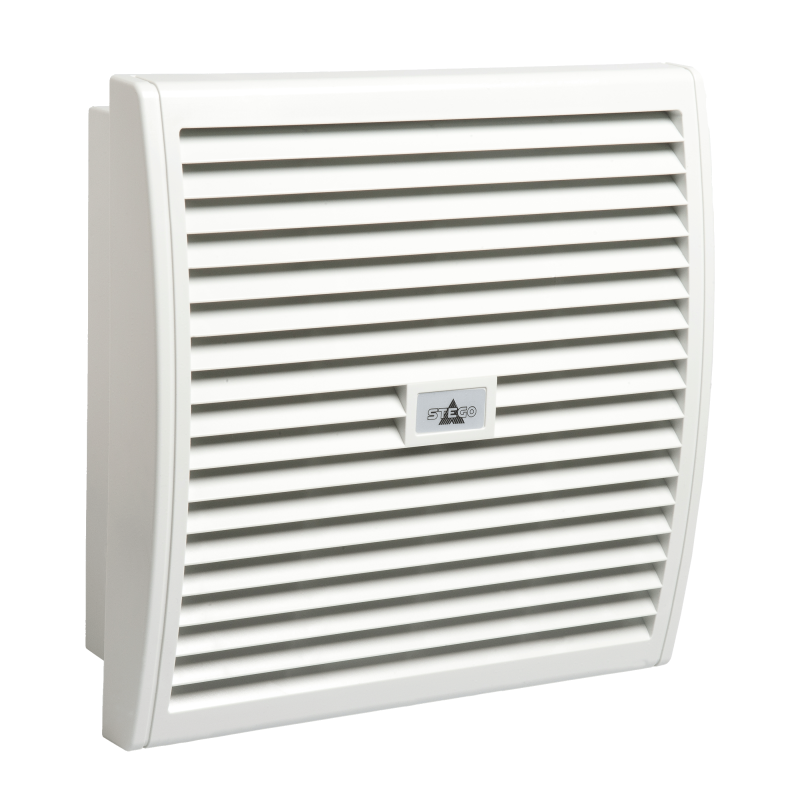

FF 018 - Fan with filter - 01804.0-00

  • 01804.0-00
  • Supply voltage 208 V - 253 V AC
  • Dimensions 226 x 209 x 136 mm
  • Housing material Tworzywo sztuczne UL94 V-0, jasnoszary
  • Protection rating IP54
  • Air flow 200 m³/h
  • Working temperature -25 ... 50 °C

A size 3 filter fan for optimal ventilation of enclosures and housings with electrical/electronic systems. The interior temperature is reduced by supplying filtered, cool ambient air and exhausting heated internal air. The resulting airflow prevents the formation of heat pockets and contactors, protecting components from overheating. Thanks to four integrated, quiet axial fans, this filter fan achieves particularly high, uniform air circulation, thus offering high operational reliability with a very shallow installation depth. This filter fan is designed for indoor use. The plastic used in the mask is highly UV-resistant.

  • Quiet in operation, easy to maintain
  • Shallow installation depth
  • High air throughput
  • Uniform air circulation
  • High operational reliability
  • UV-resistant
