Manufacturer: Kerafol

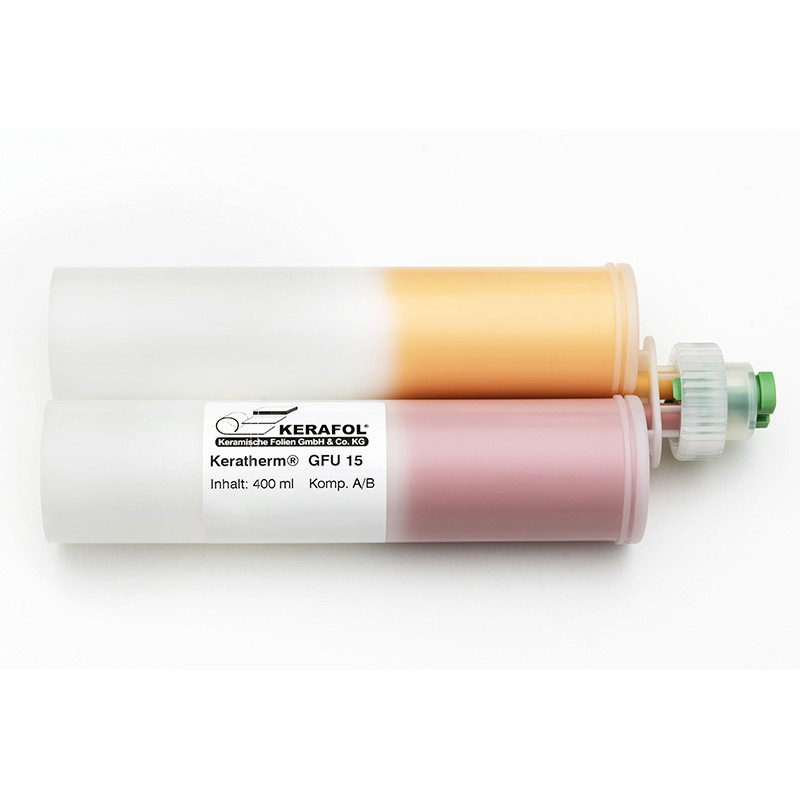

GFU 15 Liquid for filling gaps without silicone

GFU 15 Liquid for filling gaps without silicone

Application:

  • All applications with high production tolerance
  • Electric vehicles
  • High energy batteries

Benefits:

  • Curing at room temperature
  • Assembly in a fluid state

Ceramic-filled, silicone-free two-component elastomer. Curing at room temperature allows for use in "wet on wet" production.

Properties Unit GFU 15
Colour pomarańczowy
Mixing ratio 1 : 1
Hardening T[°C] <24h ; 25 °C
Thermal properties
Thermal resistance Rth K/W 0.8
Thermal conductivity λ W/mK 1.5
Electrical properties
Breakdown voltage Ud; ac kV 8
Breakdown of the dielectric Ed; ac kV/mm 16.0
Mechanical properties
Measured thickness (+/- 10%) mm 0.500
Hardness Shore 00 65 - 85
Physical properties
Application temperature °C -40 do +80
Density g/cm3 2.3
Component A viscosity Pas 140-160*
Viscosity of component B Pas 140-160*
Flammability test UL-94 V-0**
Possible thickness mm 0,200 - 5,000

*rotational viscometer
**KERAFOL® test according to UL
