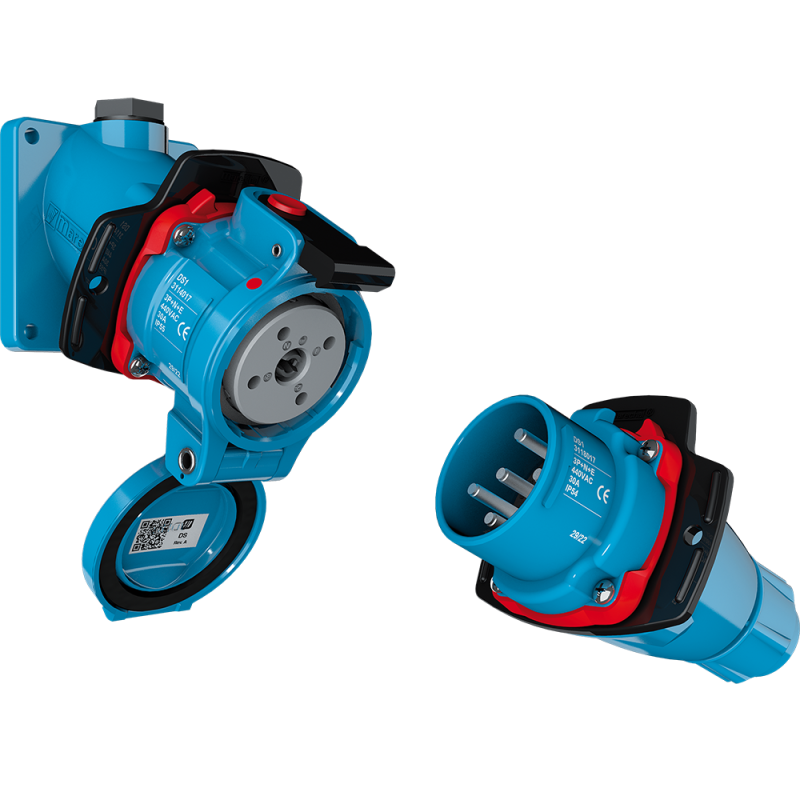

DS3 DECONTACTOR: Compact Industrial Plugs and Sockets (30A, 690V) with Disconnect Switch

Compact, durable, and sealed, this industrial plug and socket with integrated connector allows for a wide range of mounting options and methods. DECONTACTOR plugs and sockets meet all industrial electrical connection requirements.

Key features and disconnection functionality

The DECONTACTOR series is the perfect combination of safety and flexibility, designed for operation in the harshest industrial environments with a rated current of 30 A and voltages up to 690 V.

• Built-in breaking capacity AC-22 and AC-23.
• Automatic IP66/IP67/IP69 protection class.
• Up to 2 auxiliary units can be installed.
• Polycarbonate housing (Poly casing), mechanical resistance IK09.

Compliance with international standards and certifications

DECONTACTOR connectors guarantee global compliance with the strictest standards and regulations, confirmed by the world's leading certification bodies.

• Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH Regulation.
• Compliance with the standards IEC/EN 60309-1, IEC/EN 60309-4, IEC/EN 60947-3 (defining the breaking capacity for the AC-22 and AC-23 utilization categories).
• Compliance with the standards UL 1682, UL 2682 (USA), CSA C22.2 N 182.1-07 (Canada), MIL-S-901D (military marine specifications), GB/T 11918.1 (China). Certification by leading organizations: LCIE (France), UL (USA), SAA (Australia), VDE (Germany), TR CU (Russia), CSA (Canada), Bureau Veritas Marine, MIL-S-901D (Military), CQC (China), SGBP (Singapore). Ensures compliance of electrical machines with the European Machinery Directive in the scope of disconnectors and the EN 60204-1 standard: Machinery Safety - Electrical Equipment of Machines.
• Ensures compliance of electrical installations with the decrees of August 30, 2010, September 22, 2010, and the implementing decrees of the French Labor Code regarding occupational health and safety when using electrical installations.
• Ensures compliance of electrical installations with national regulations for worker protection in Belgium, Spain, and Italy.
• Ensures compliance of electrical installations with the IEC/HD 60364 and NF C 15-100 standards.
