Manufacturer: STEGO

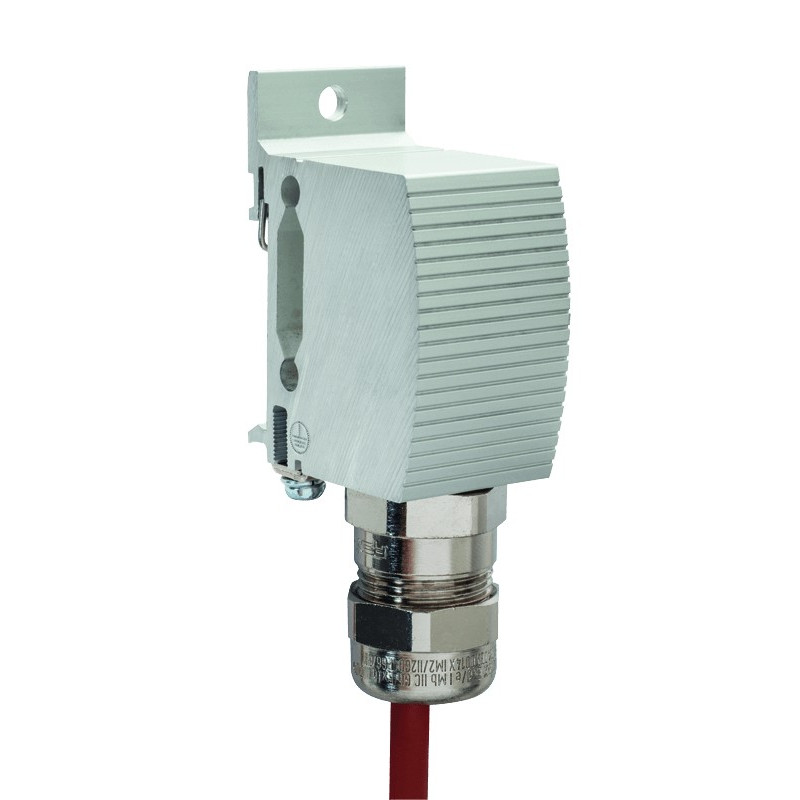

REX 011 - Explosion-proof Thermostat - 01185.0-01

  • 01185.0-01
  • Additional information Przy prądach powyżej 4 A, różnica temperatury przełączania ulega zmianie.
  • Dimensions 95 x 30 x 45 mm
  • Protection rating IP66
  • Changeover contact Kontakt sprężyn
  • Weight 300 g
  • Working temperature -60 °C - 60 °C

Thermostat for the T6 temperature class (max. 85°C) Ex zone. High switching capacity for direct control of connected heaters. Applications: Electrical enclosures and control cabinets in potentially explosive environments. Mechanical thermostat with high response accuracy and speed.

  • Low switching temperature difference
  • High switching capacity
  • Compact, integrated, fixed-set thermostat
  • Silicone connection cable with strain relief, 1 or 2 m long
