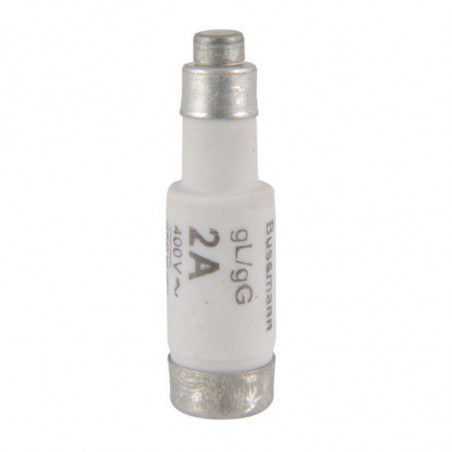

Installation fuse inserts type "D0"
  • Installation fuse inserts type "D0"

Photos are for informational purposes only. View product specification

Manufacturer: EATON Bussmann

Installation fuse inserts type "D0"

INSTALLATION FUSES INSERTS TYPE "DO"



technical Data
Size  e14

Marking
In + NZ01
Nominal Current
2A, 4A, 6A, 10A, 16A
Nominal voltage
400V AC, 250V DC
Quantity in package
10



Size e18
Marking
In + NZ02
Nominal Current
20A, 25A, 35A, 50A, 63A
Nominal voltage
400V AC, 250V DC
Quantity in package
10

Casing

TypeCatalogue numberA
[mm]
B
[mm]
Colour marking
  2NZ01 36 11 pink
  4NZ01 36 11 brown
DOI 6NZ01 36 11 green
  10NZ01 36 11 red
  16NZ01 36 11 gray

  20NZ02 36 15 blue
  25NZ02 36 15 yellow
D02 32NZ02 36 15 black
  50NZ02 36 15 white
  63NZ02 36 15 copper
